C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-275 Rev.1

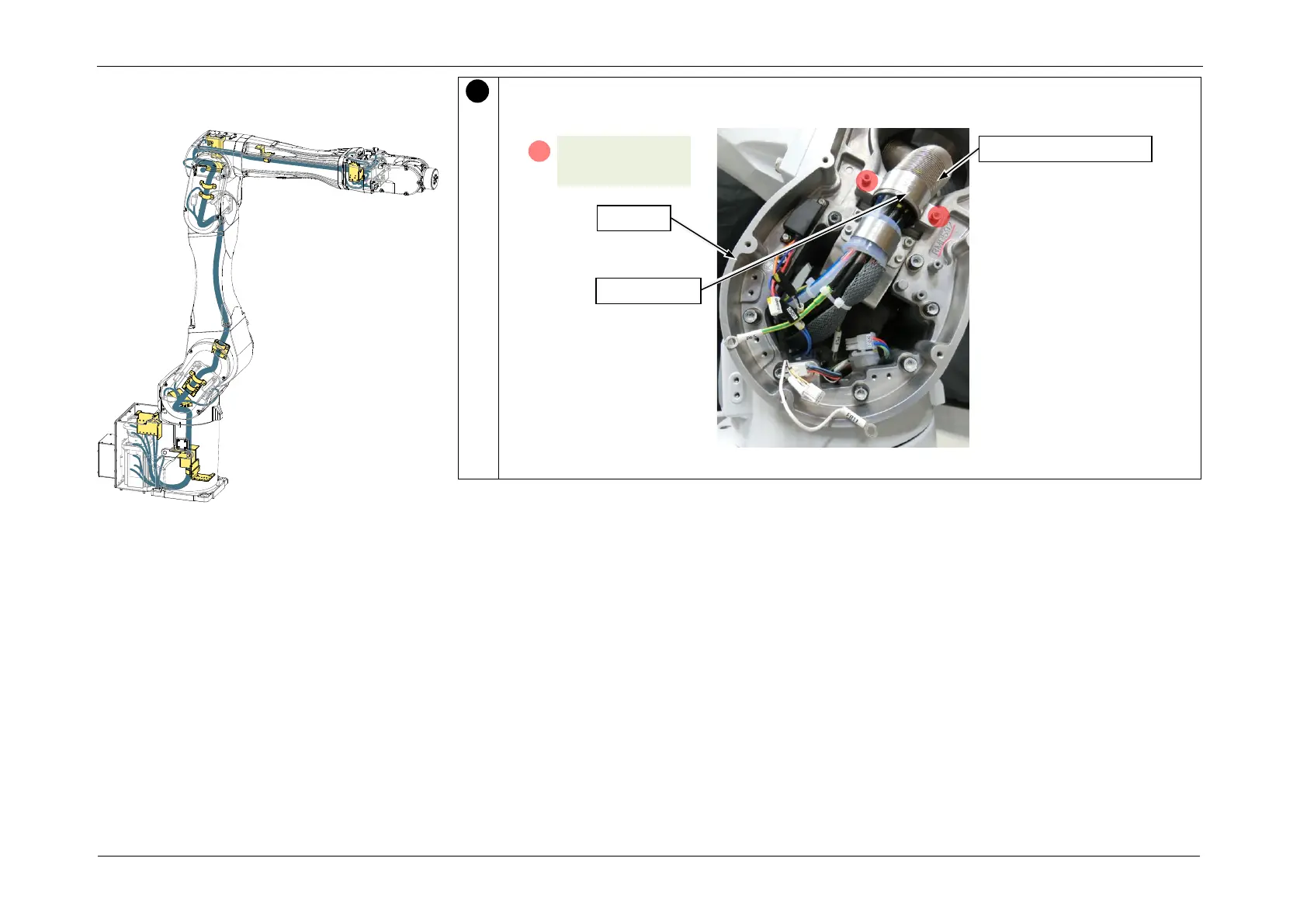

Secure the Cable Unit to Arm1.
1. Secure the cable protective spring to Arm1 with the bracket (S2).
6
S01: 2-M4x10
(4.0 +/- 0.2 N·m)
A
Arm1
Cable protective spring
Bracket (S2)
Installing the Cable Unit
