POINT

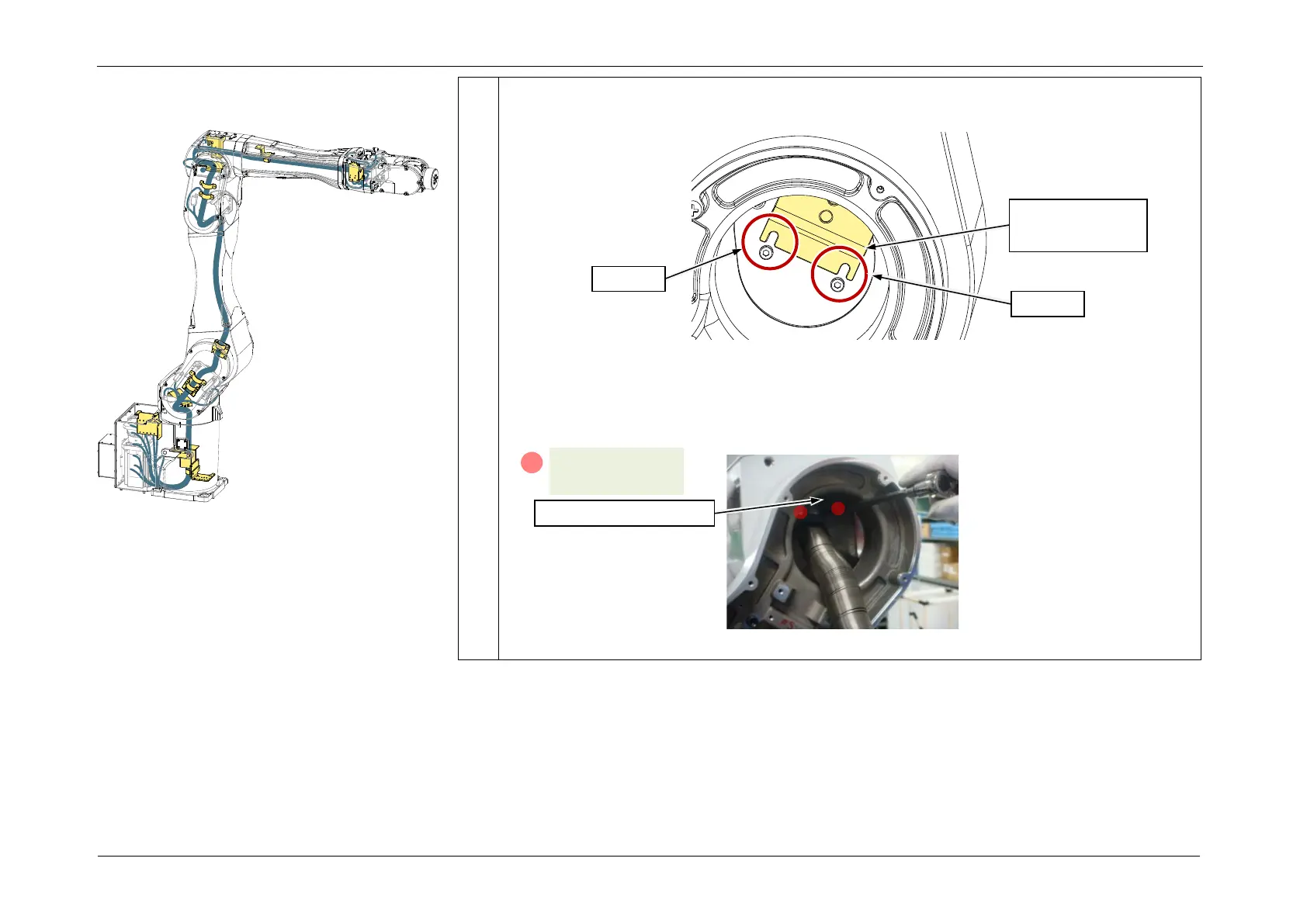

Secure the Arm2 cable fixing plate by hooking the cutouts onto the fixing bolts.
10. Fully tighten the cable bracket (C2) fixing screws.
POINT
Check that the silicone tube has not come off from the cable bracket (C2).
S01: 2-M3x6
(2.4 +/- 0.1 N⋅m)
A
Arm2 cable fixing plate
Arm2 cable fixing
plate
Cutout
Cutout
Installing the Cable Unit
