C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-273 Rev.1

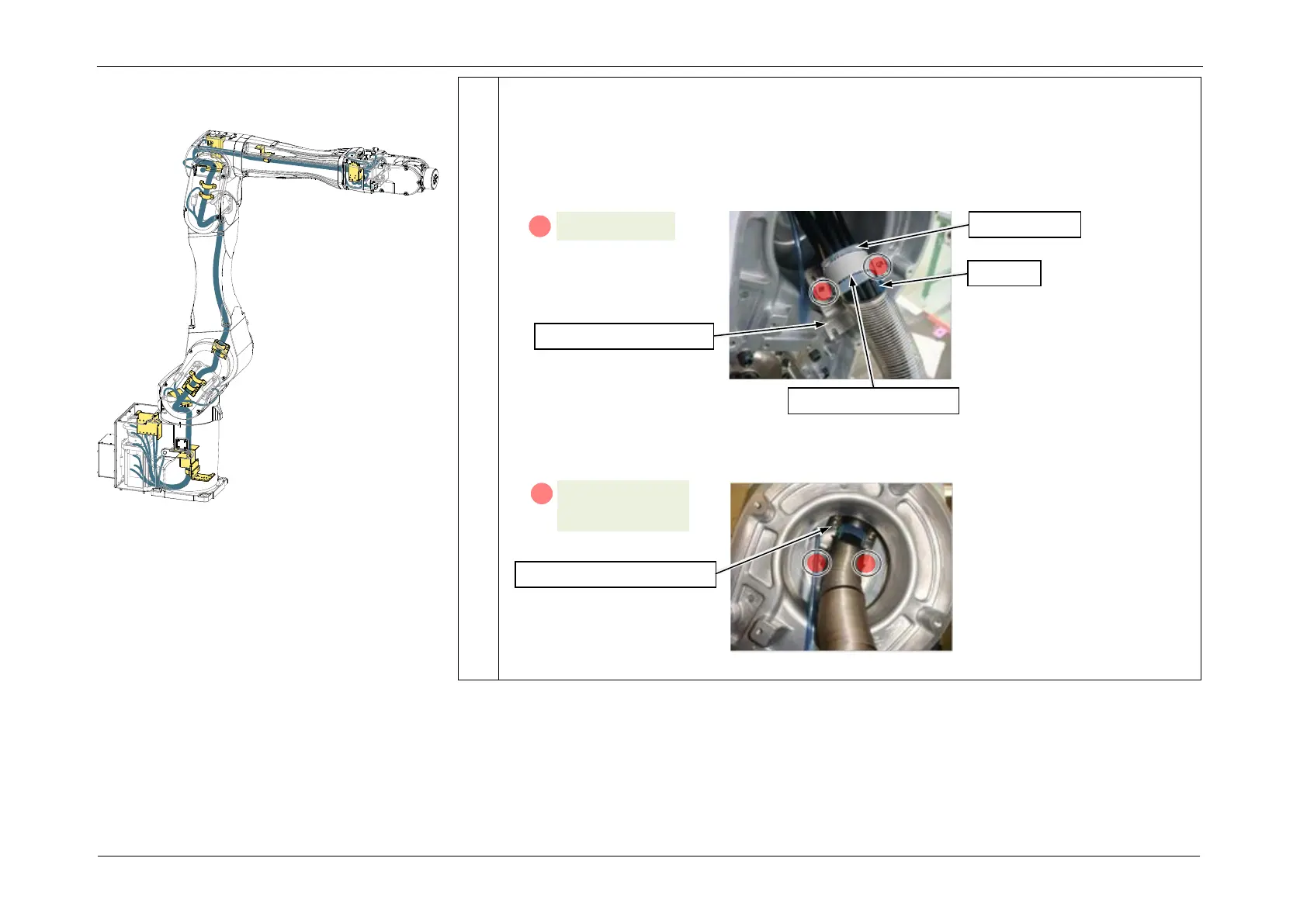

8. Temporarily secure the cables to the Arm2 cable fixing plate using the cable bracket
(C2).
POINT
• Secure so that the cables can still be pushed up.
• Align the silicone tube and cable bracket (C2) positions.
9. Install the Arm2 cable fixing plate.
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Arm2 cable fixing plate
A
S01: 2-M3x6
Cable bracket (C2)
Cable
Silicone tube
Arm2 cable fixing plate
Installing the Cable Unit
