C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-272 Rev.1

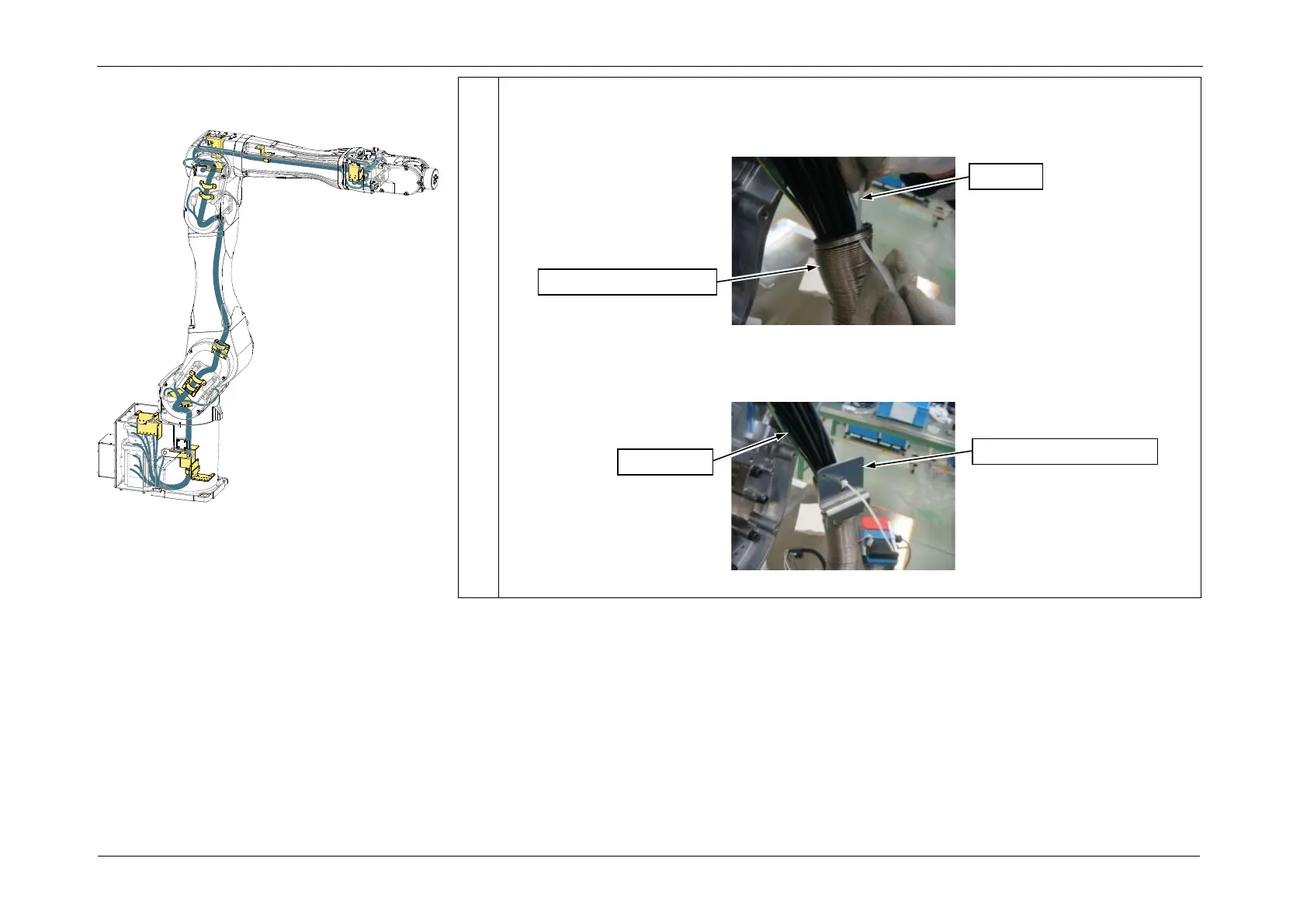

7. Bind the cable protective spring to the Arm2 cable fixing plate.
Wire tie: AB100
Number of turns of spring to fix: 4 turns
POINT
Install the Arm2 cable fixing plate on the Cable Unit with the orientation as shown in the
figure.
Arm2 cable fixing plate
Cable Unit
AB100
Cable protective spring
Installing the Cable Unit
