4. Fully tighten the cable bracket (C3A) fixing screws.
POINT
Check that the silicone tube has not come off from the cable bracket (C3A).
5. Install the J3 Motor unit.
6. Connect the Ground Wires (PE7, PE8, FB12).
S04: 3-M4x6
（0.9 +/- 0.1 N·m）
A
PE7
PE8
FB12
Cable bracket (C3A)
S01: 2-M4x8
(4.0 +/- 0.2 N⋅m)
A
Silicone tube

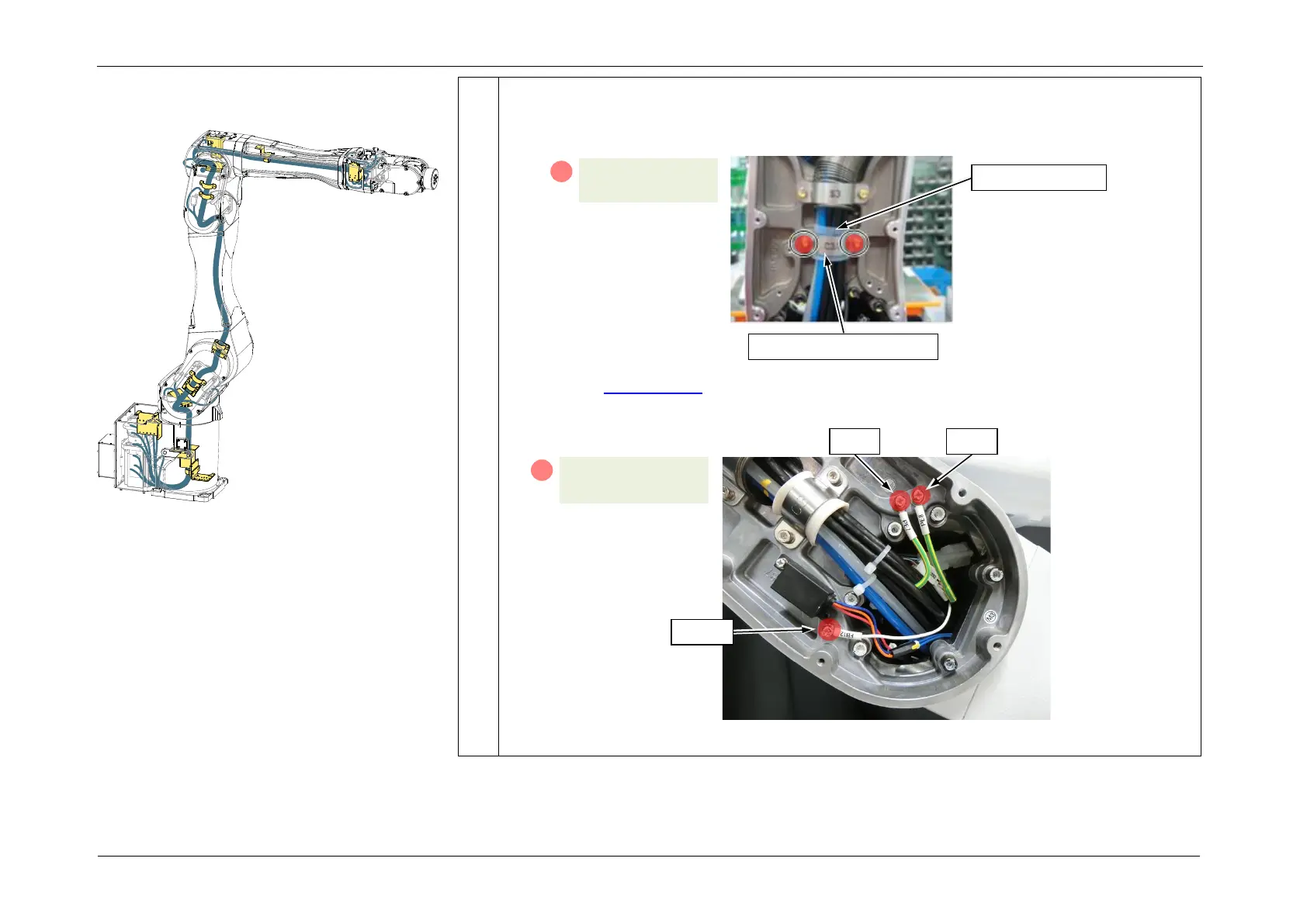

Installing the Cable Unit
