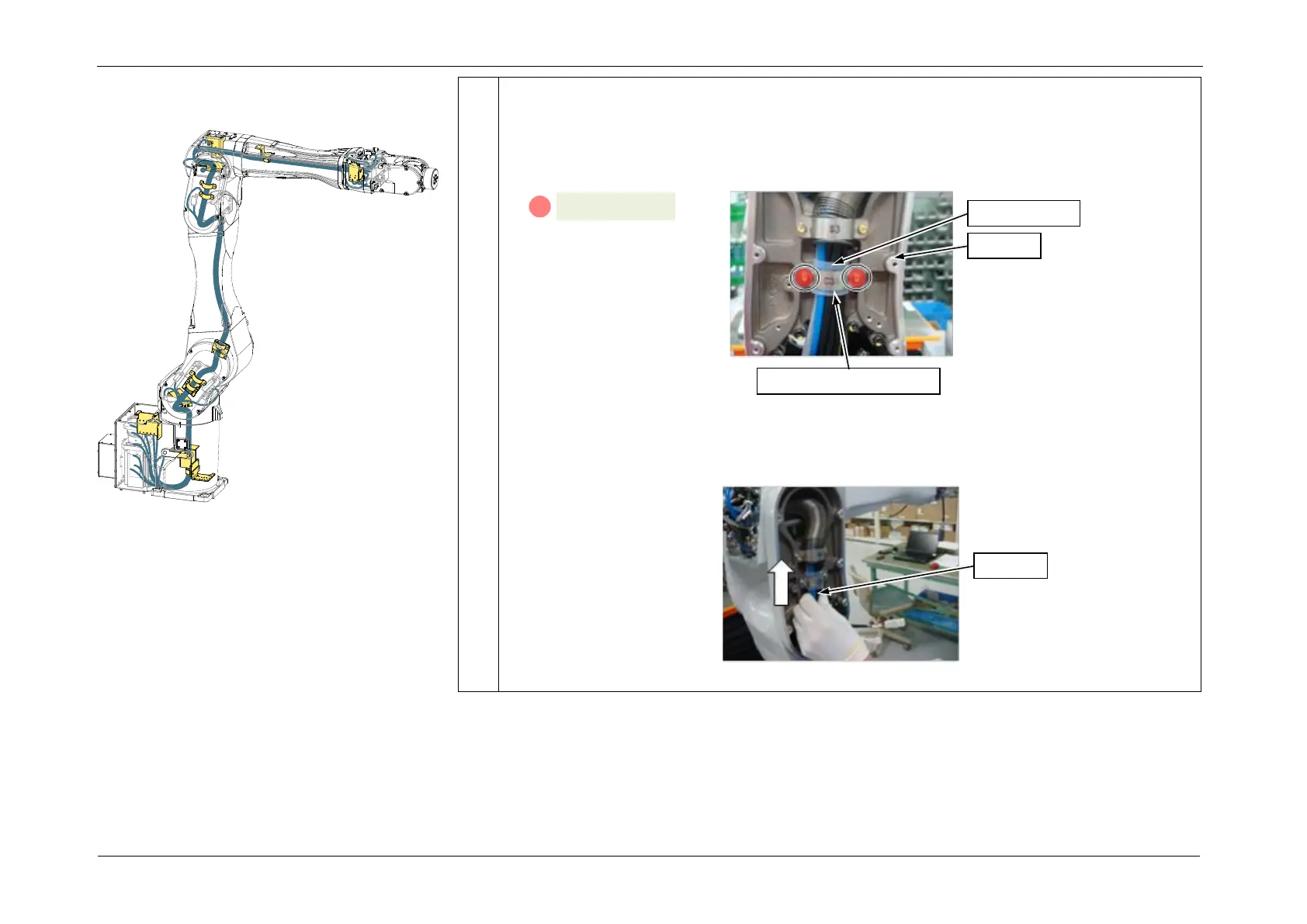

2. Temporarily secure the cables to Arm2 using the cable bracket (C3A).
POINT
• Secure so that the cables can still be pushed up.
• Align the silicone tube and cable bracket (C3A) positions.
3. Push up the whole of the cables by 10 mm in the direction indicated with the arrow to
allow for some space.
Cable
A
S01: 2-M4x8
Cable bracket (C3A)
Arm2
Silicone tube
Installing the Cable Unit
