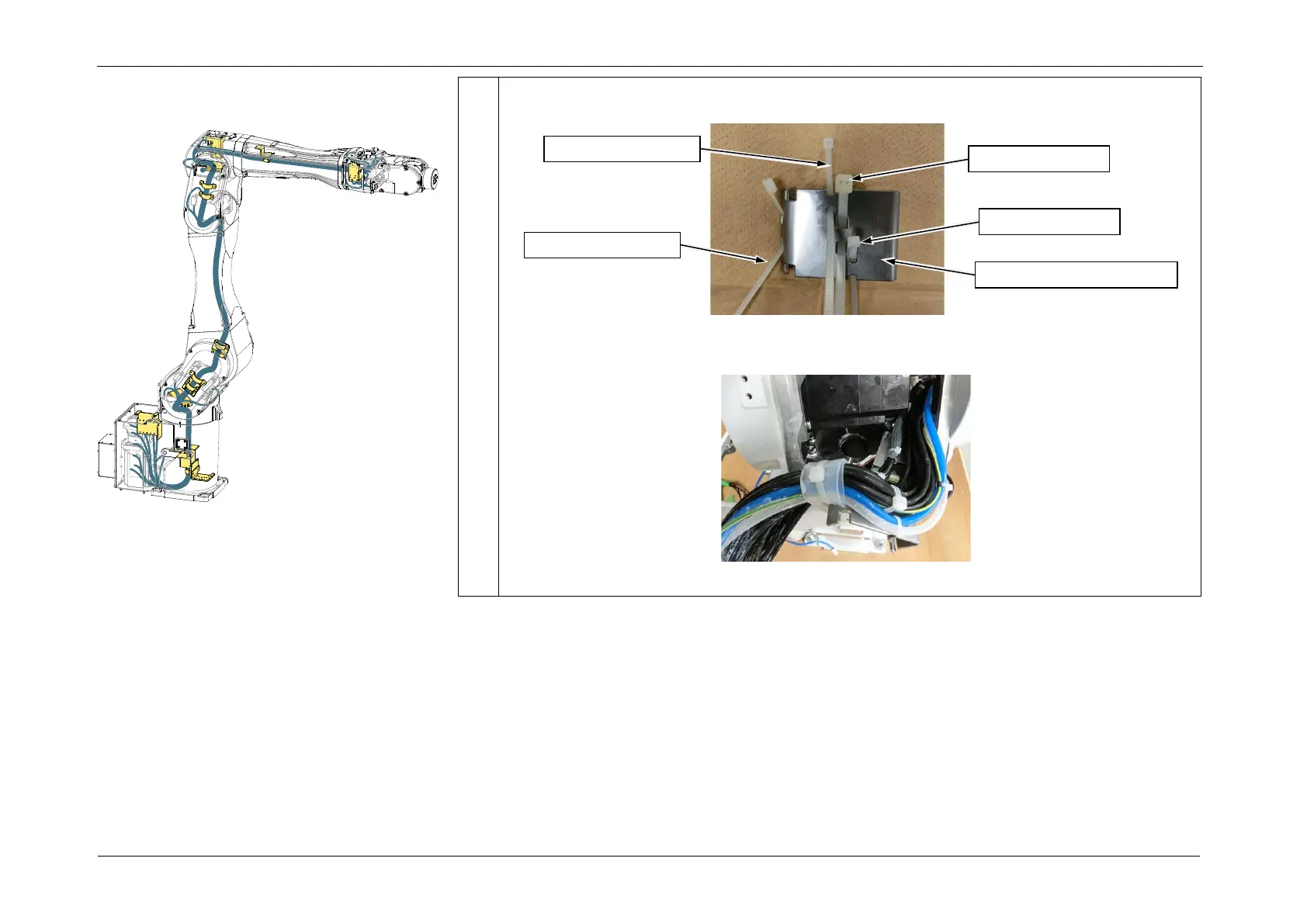

9. Pass four wire ties through the Arm1 cable fixing plate as shown in the figure.
At this point, temporarily fasten the wire ties just tight enough that the cables can move.
10. Pull out the internal cables from the Arm1 side toward the base side.
Wire tie (AB150)
Wire tie (AB150)
Arm1 cable fixing plate
Wire tie (AB300)
Wire tie (AB300)
Installing the Cable Unit
