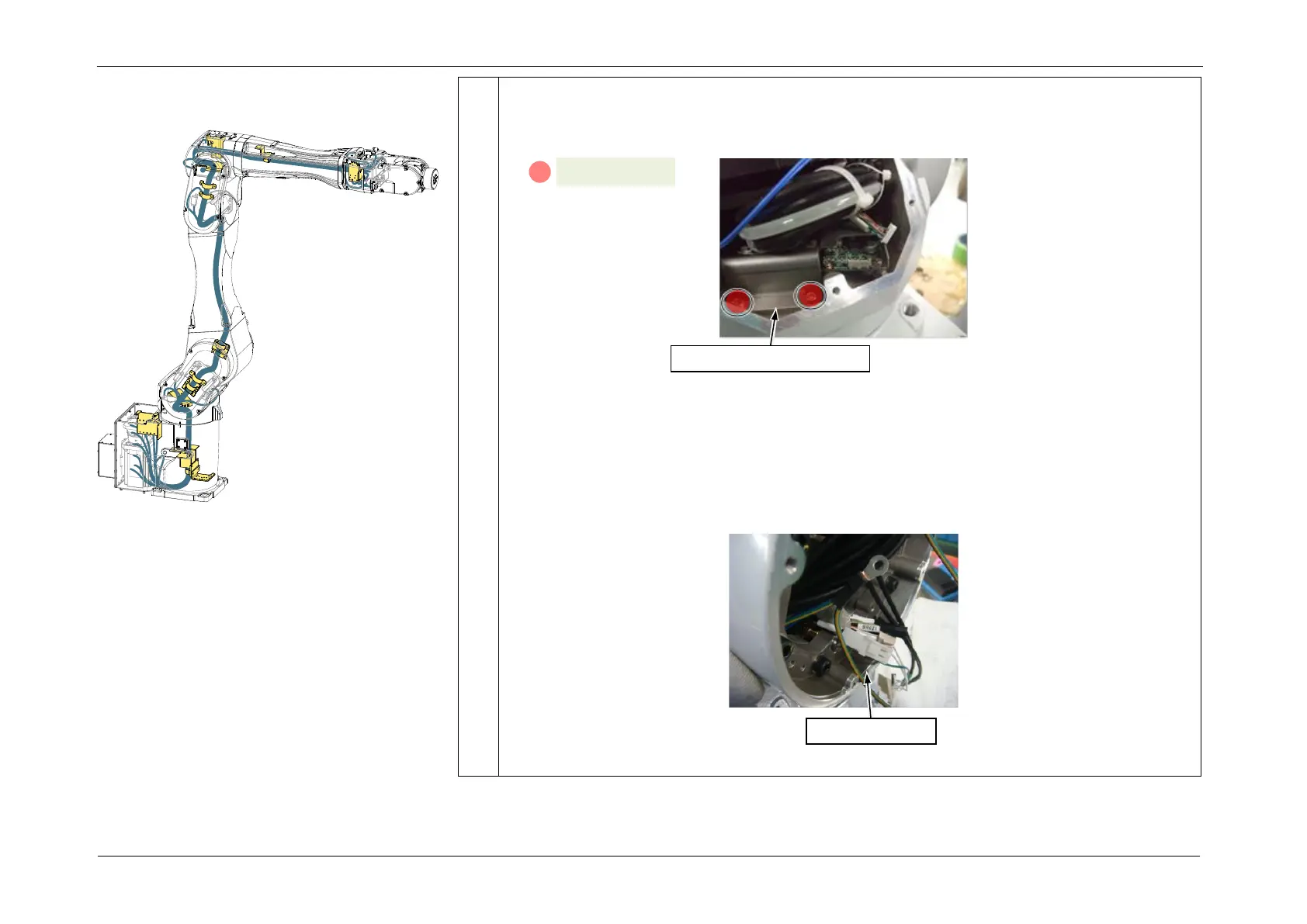

11. Temporarily secure the Arm1 cable fixing plate to Arm1.
POINT
Secure it enough that the plate does not move.
12. Adjust the cable length with attention paid to the following.
• No excess looseness or tension on the cables.
• The cables should not be pressed strongly against the arm edge.
• The CN421, CN121, and CN321 connectors should reach the end face of Arm1 when
they are pulled out. The cables should not be too long.
