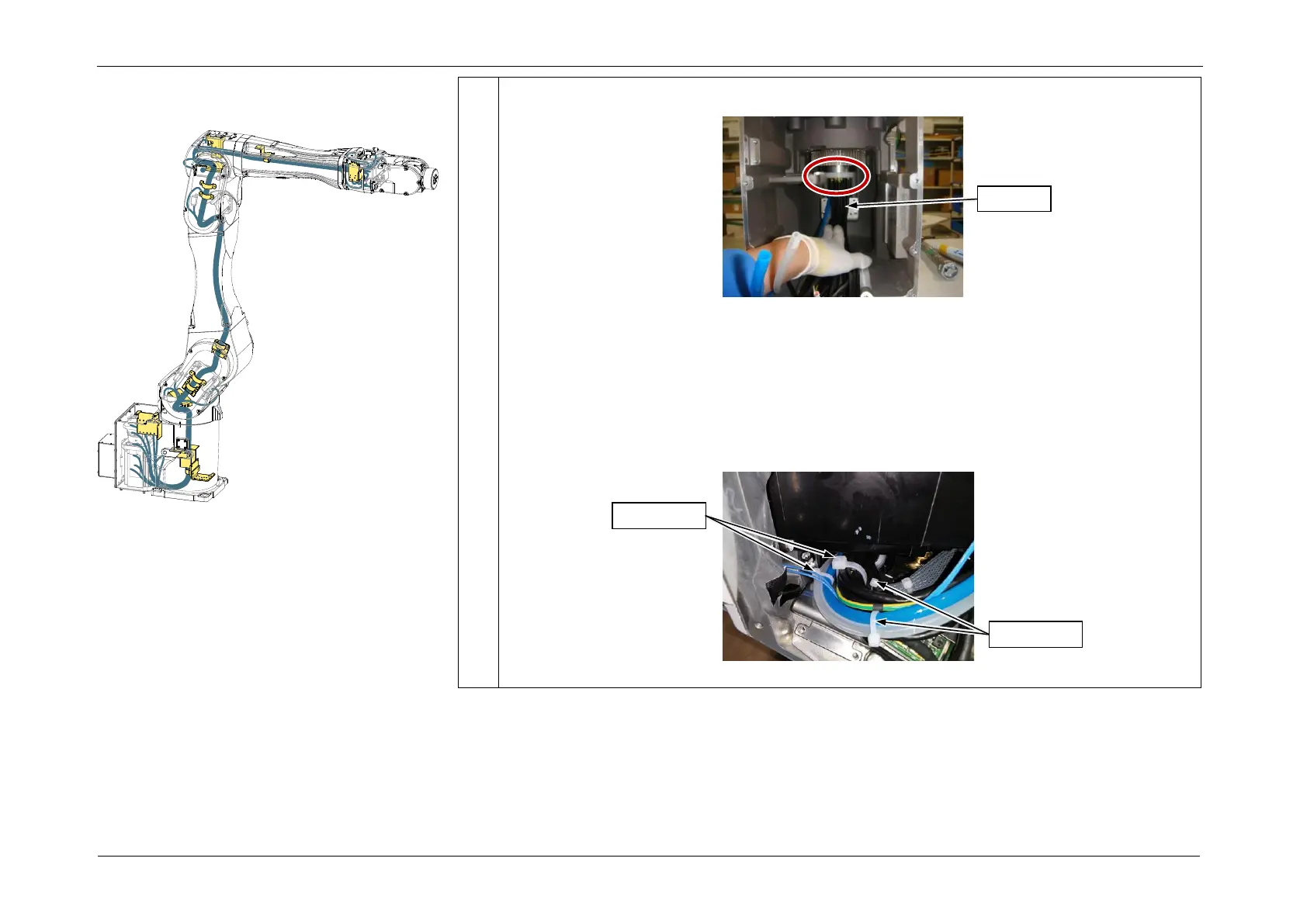

13. Place a mark on the cables at the sleeve outlet on the base side.
14. Bind the cables using the wire ties passed through the Arm1 cable fixing plate.
(4 locations)
POINT
Branch and secure the cables.
CAUTION
Bind the cables so that the cable positions do not change.
Wire ties
Wire ties
Cable
Installing the Cable Unit
