C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-283 Rev.1

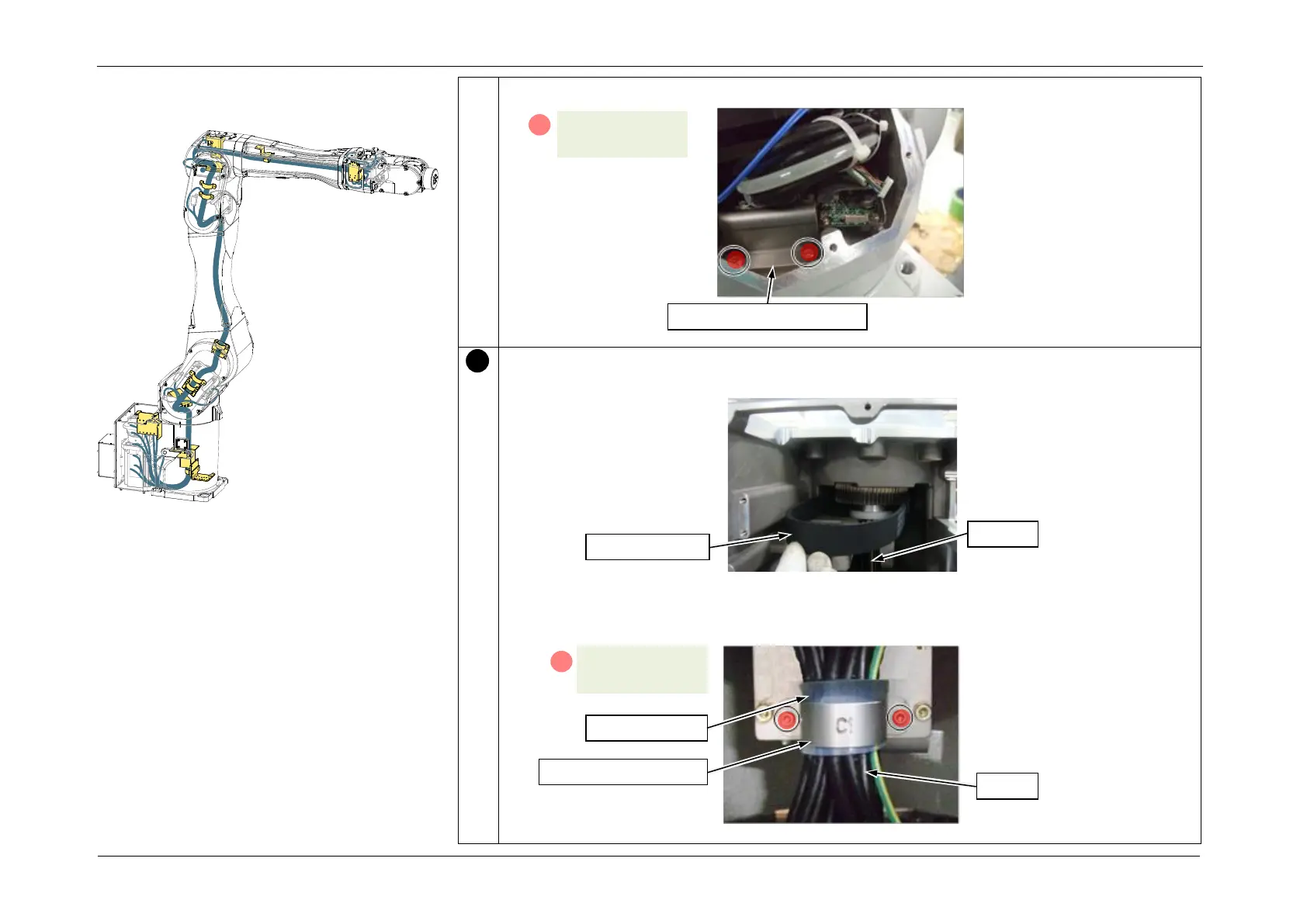

17. Secure the Arm1 cable fixing plate to Arm1.
Secure the Cable Unit to the base.
1. Pass the J1 Timing Belt through the cables.
2. Wrap the attached Silicone Sheet around the cables.
3. Install the cable bracket (C1) so that it presses down on the Silicone Sheet.
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Arm1 cable fixing plate
7
J1 Timing Belt
Cables
S01: 2-M3x6
(2.0 +/- 0.1 N⋅m)
A
Cable bracket (C1)
Silicone Sheet
Cables
Installing the Cable Unit
