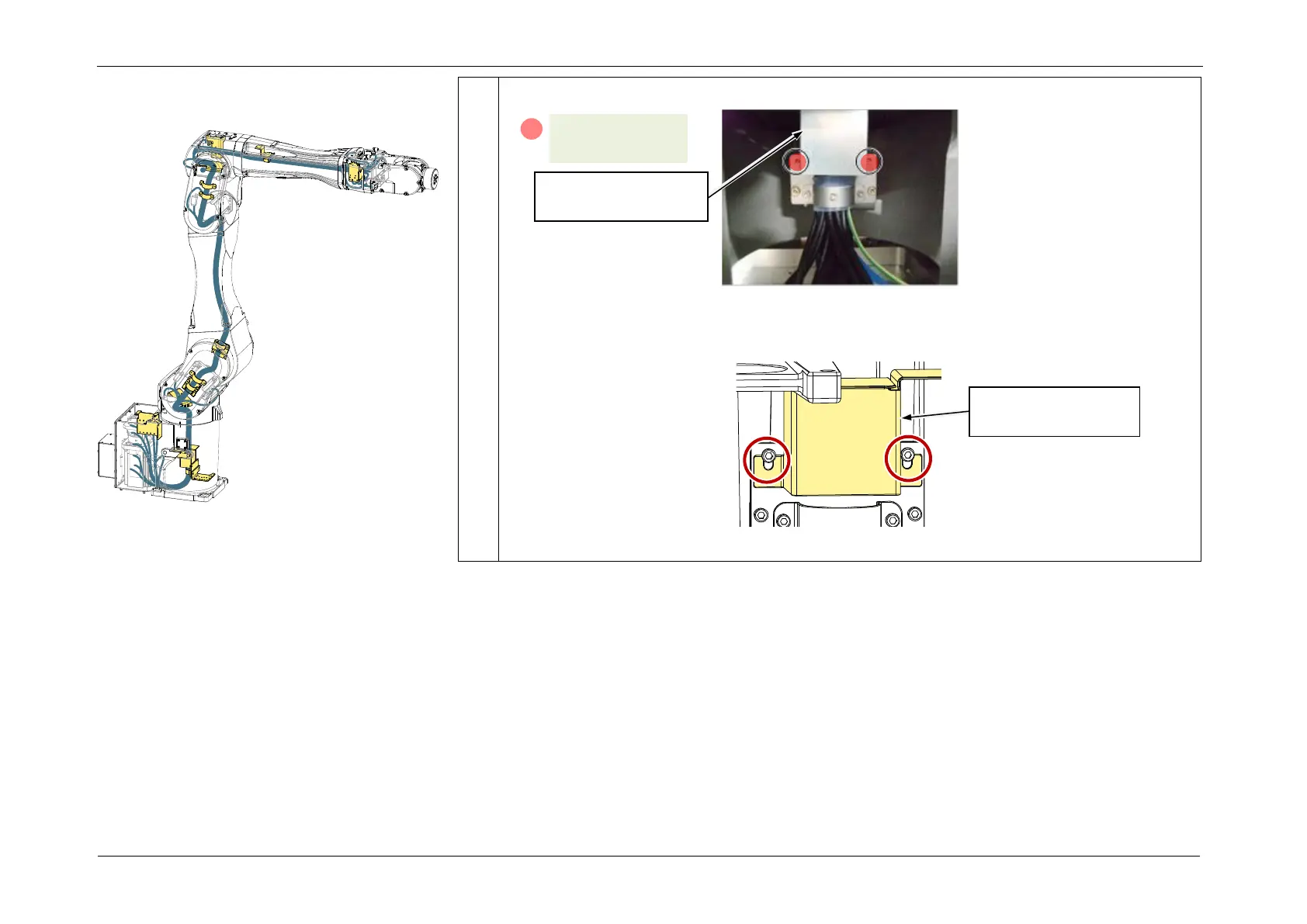

4. Install the plate for preventing cable interference.
POINT
Slide the cutout section on the plate for preventing cable interference, and secure with
screws.
Plate for preventing
cable interference
S01: 2-M3x6
(2.0 +/- 0.1 N⋅m)
A
Plate for preventing
cable interference
Installing the Cable Unit
