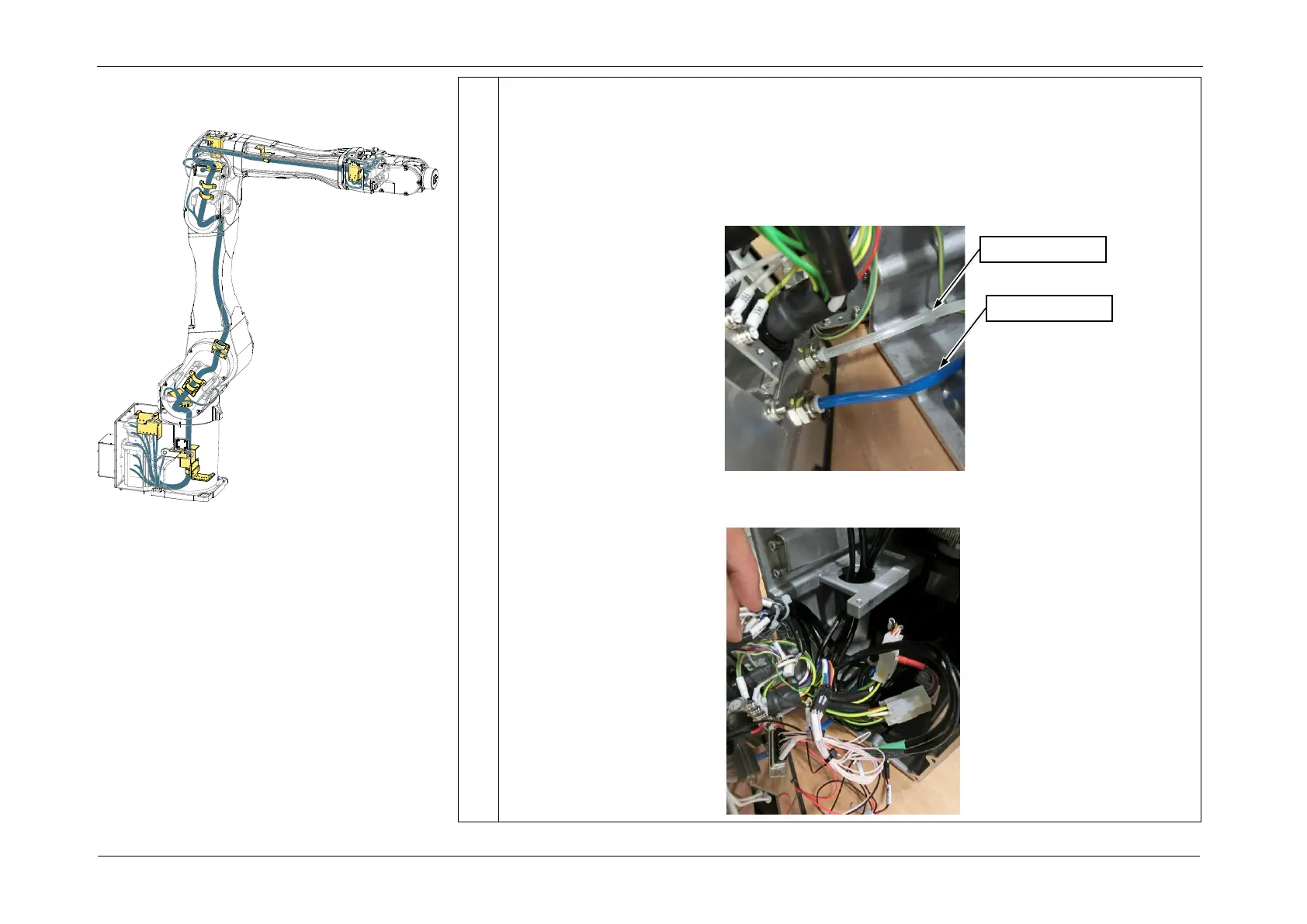

5. Connect the Air Tubes (blue/white) in accordance with the indications on the Connector
Plate.
CAUTION
Check the Air Tube colors before connecting.
• White: Air1
• Blue: Air2
6. Connect the M/C cable connectors (CN111, CN311, CN410, CN411 (motor/brake),
CN3L, CN202, CN312, CN200, CN300, CN201, CN301, CN3G0).
Air Tube (white)
Air Tube (blue)
Installing the Cable Unit
