C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-286 Rev.1

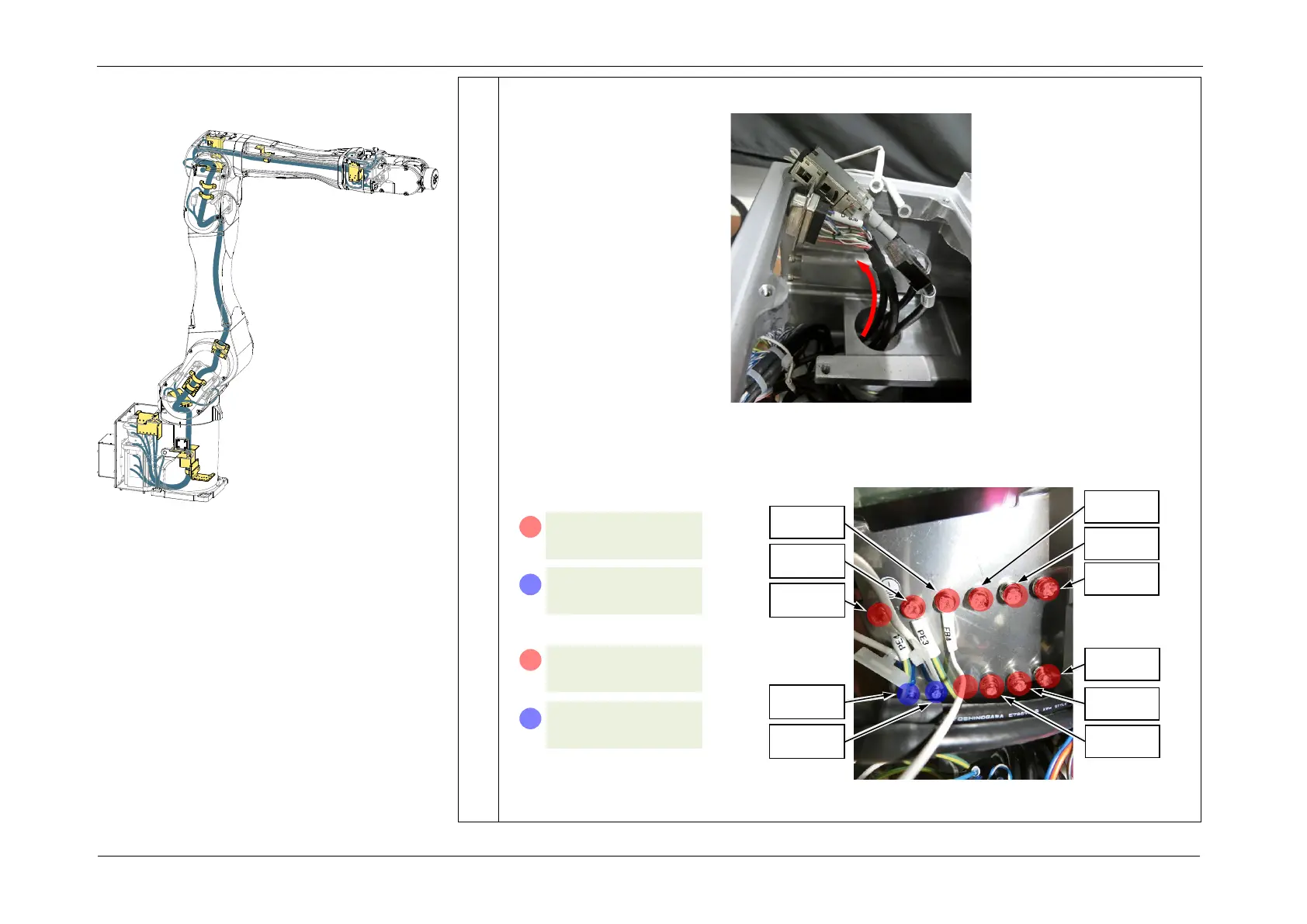

7. Pass the following cables and connectors through the hole in the base.
8. Install the ground wire terminals (PE3, FB4, FB3, FB16, FB8, FB7, FB6, FB5) to the
ground wire plate.
Standard model/
Cleanroom model:
Protection model:
FB3
FB16
FB8
FB5
FB6
FB7
FB4
PE3
PE4
FB9
FB10
S04: 10-M4x6
(0.9 +/- 0.1 N·m)
A
S04: 2-M3x6
(0.45 +/- 0.05 N·m)
B
A
S04: 2-M3x6
(0.45 +/- 0.05 N·m)
B
S04: 8-M4x6
(0.9 +/- 0.1 N·m)
• D-sub cable
• Ground Wires
• RJ45 connector
• F-sensor connector
Installing the Cable Unit
