C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-288 Rev.1

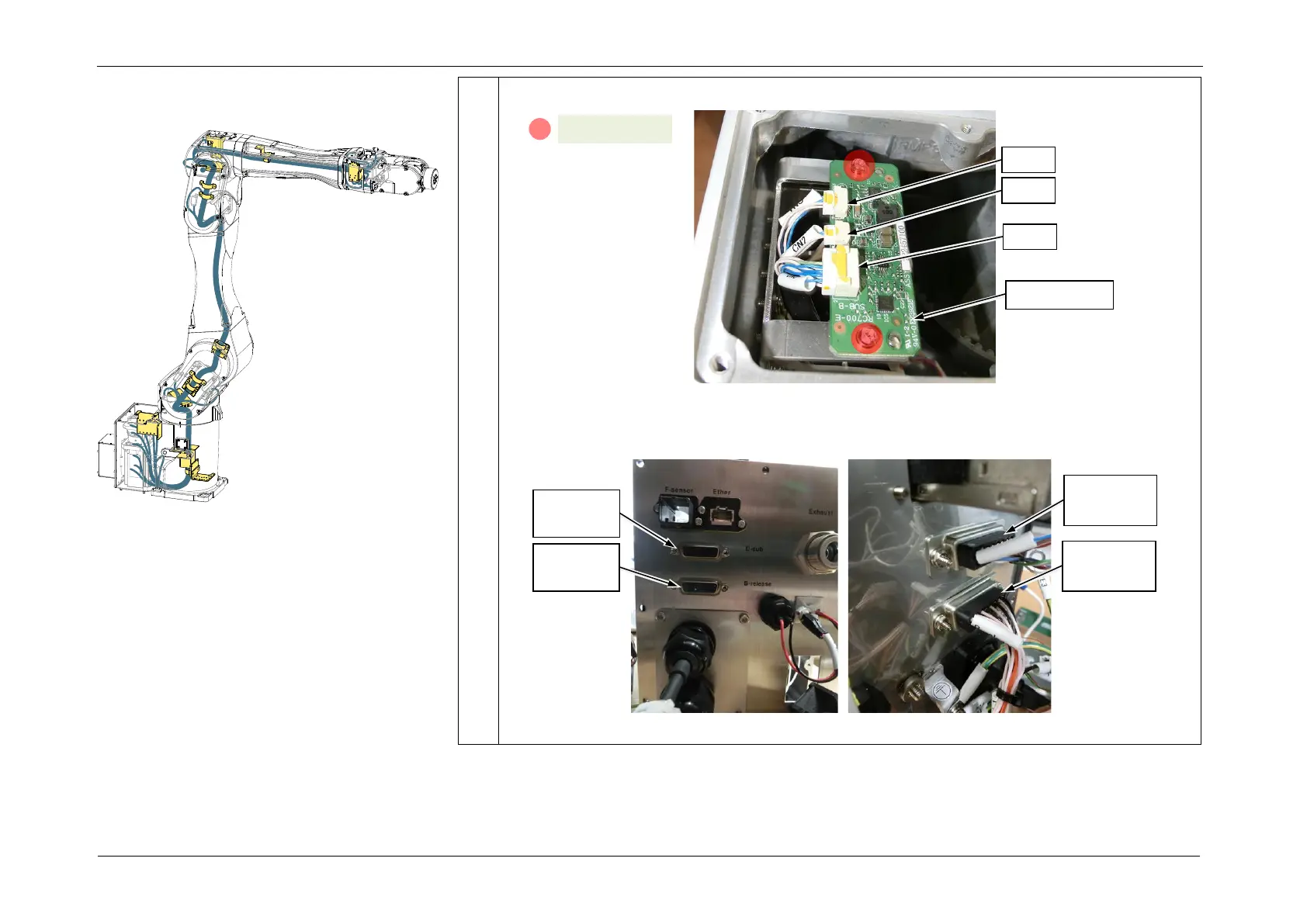

11. Install the DC/DC Board, and connect the DC/DC Board connectors (CN1, CN2, CN3).
12. Install the B-Release plug and the D-sub connector in accordance with the indications
on the Connector Plate.
B-Release
plug
D-sub
connector
B-Release
plug
D-sub
connector
S07: 2-M3x6
A
DC/DC Board
CN1
CN2
CN3
Installing the Cable Unit
