C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-291 Rev.1

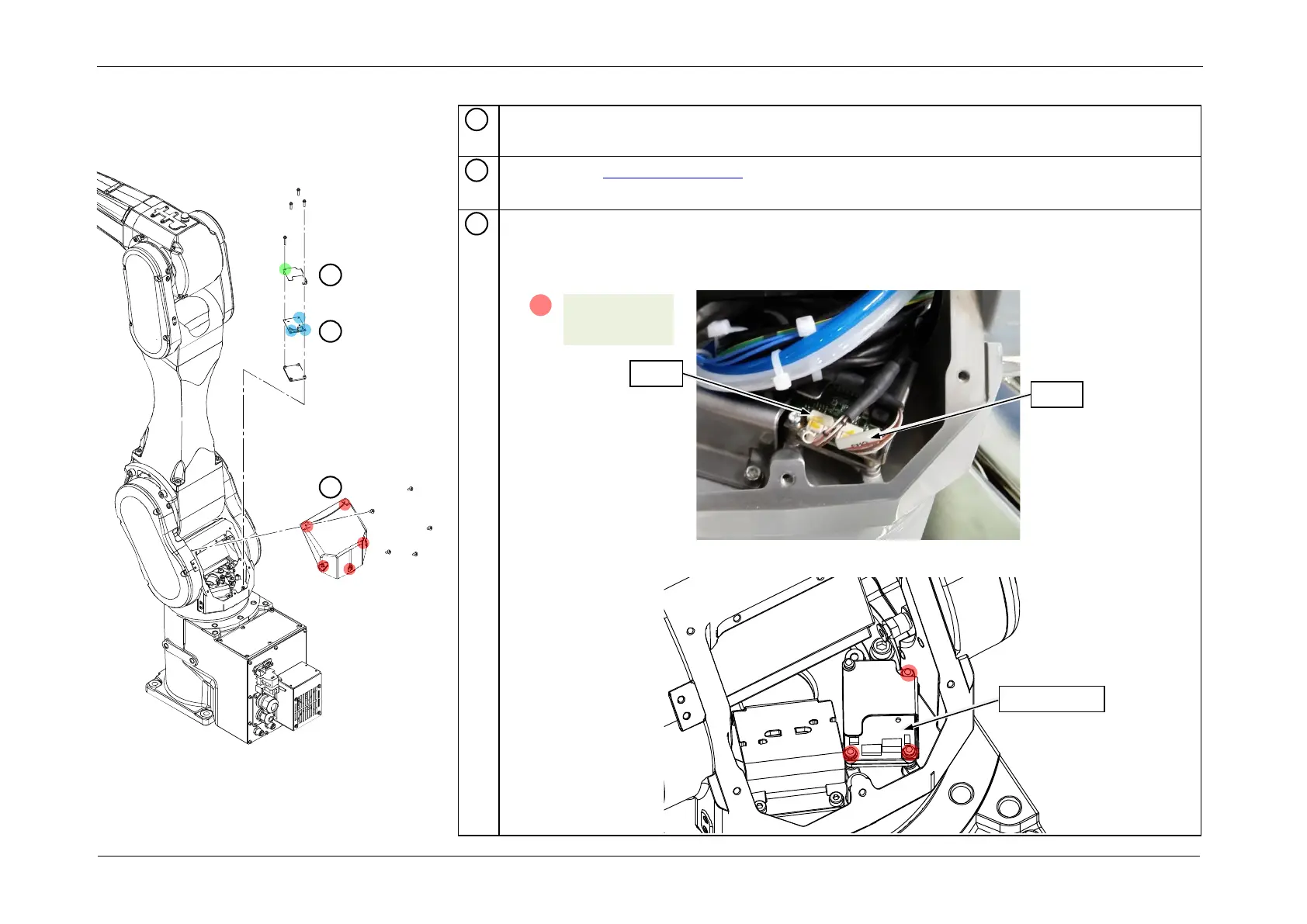

Removing Gyro Board 1
Turn OFF the Controller.
Remove the Arm1 center cover.
Disconnect the connectors (CN3, CN6), and remove gyro board 1.
CAUTION
Be careful not to drop the screws inside the Manipulator.
1
2
3
A
CN6
S03: 3-M3x15
with washer
Gyro board 1
CN3
4
3
2
