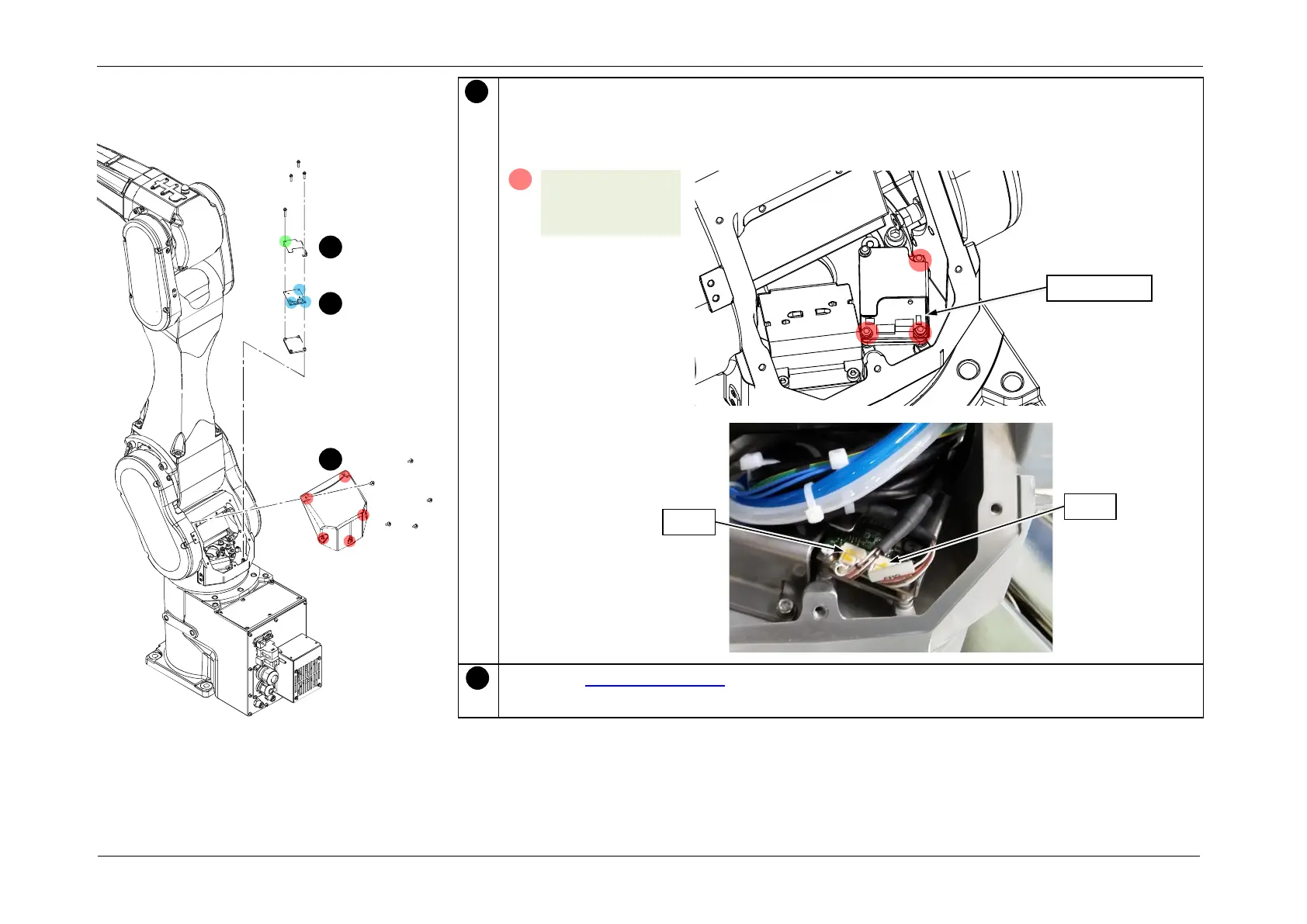

Install gyro board 1 on Arm1, and connect the connectors (CN3, CN6).
CAUTION
Be careful not to drop the screws inside the Manipulator.
Install the Arm1 center cover.
2
A
Gyro board 1
1
CN3
CN6
S03: 3-M3x15
with washer
(0.45 +/- 0.1 N·m)
3
1
2
3
Installing Gyro Board 1
