C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-293 Rev.1

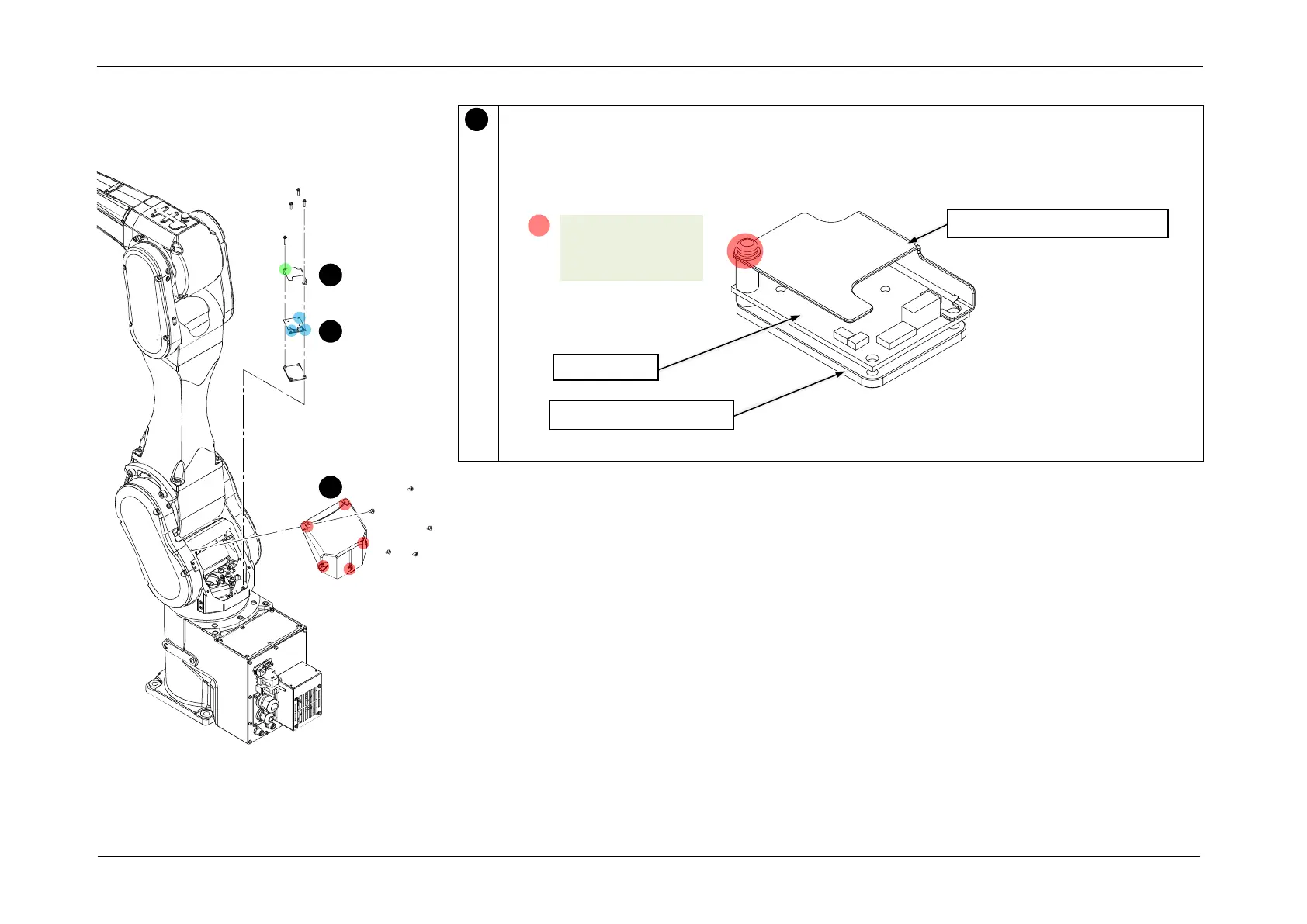

Installing Gyro Board 1
Install the gyro board 1 protective plate on gyro board 1.
POINT
Install the gyro board 1 protective plate to the board with the orientation as shown in the
figure. Any orientation is acceptable for installation of the gyro board 1 fixing plate.
1
A
S03: 1-M3x20
with washer
(0.45 +/- 0.1 N·m)
Gyro board 1 protective plate
Gyro board 1
Gyro board 1 fixing plate
1
2
3
