B. Installation
Install the base bottom gasket in the groove on the base bottom.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the base cover.
CAUTION
• If bolts other than the hexagon socket head cap screws are used, the bolt heads may
protrude from the end face of the base and the cover may not be fixed stably.
• When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also,
do not bend or push the cables in using excessive force.

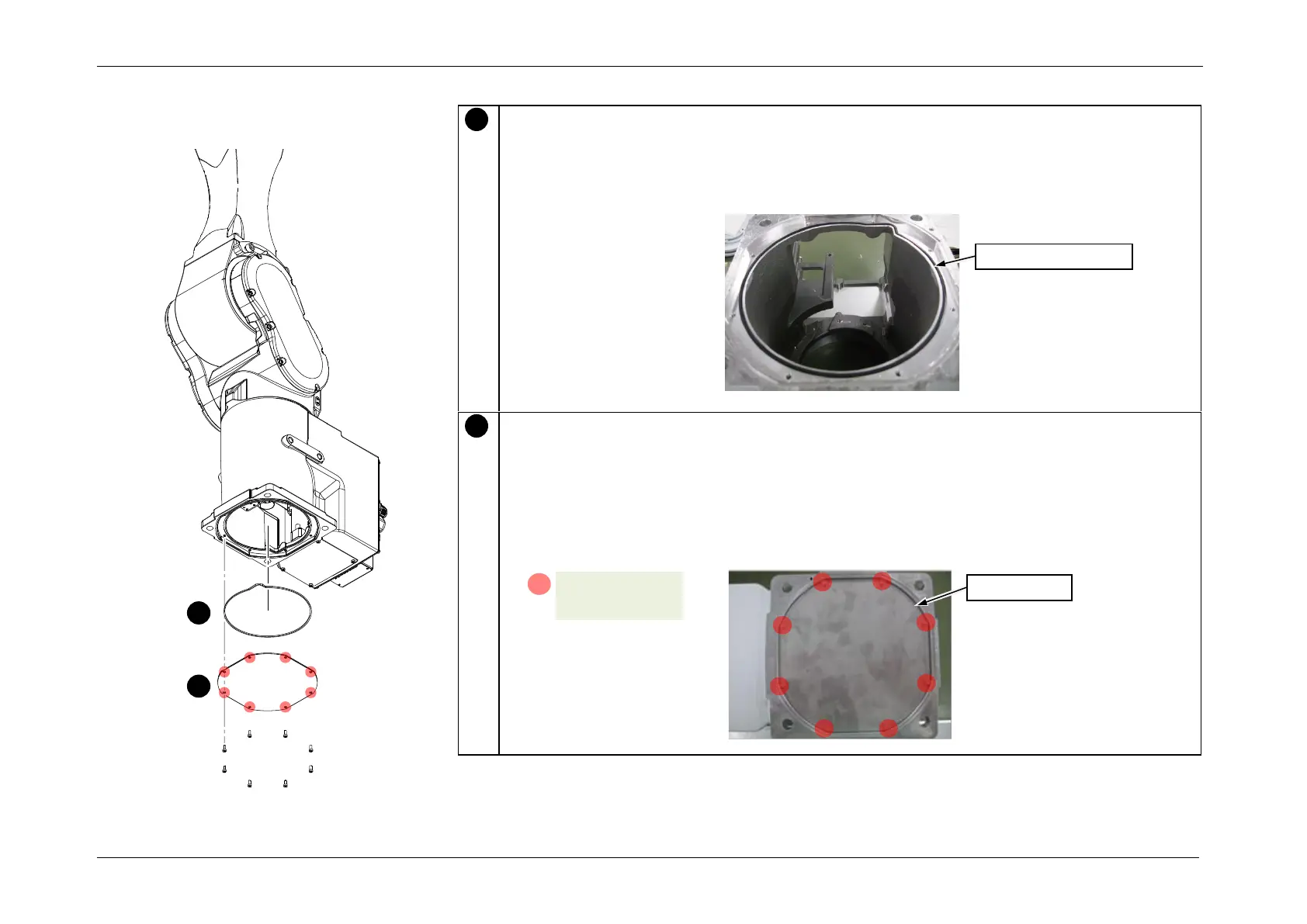

1
Base bottom gasket
2
S01: 8-M4x10
(4.0 +/- 0.2 N⋅m)
A
Base cover
1
2
