C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-325 Rev.1
Protection Model
A. Removal

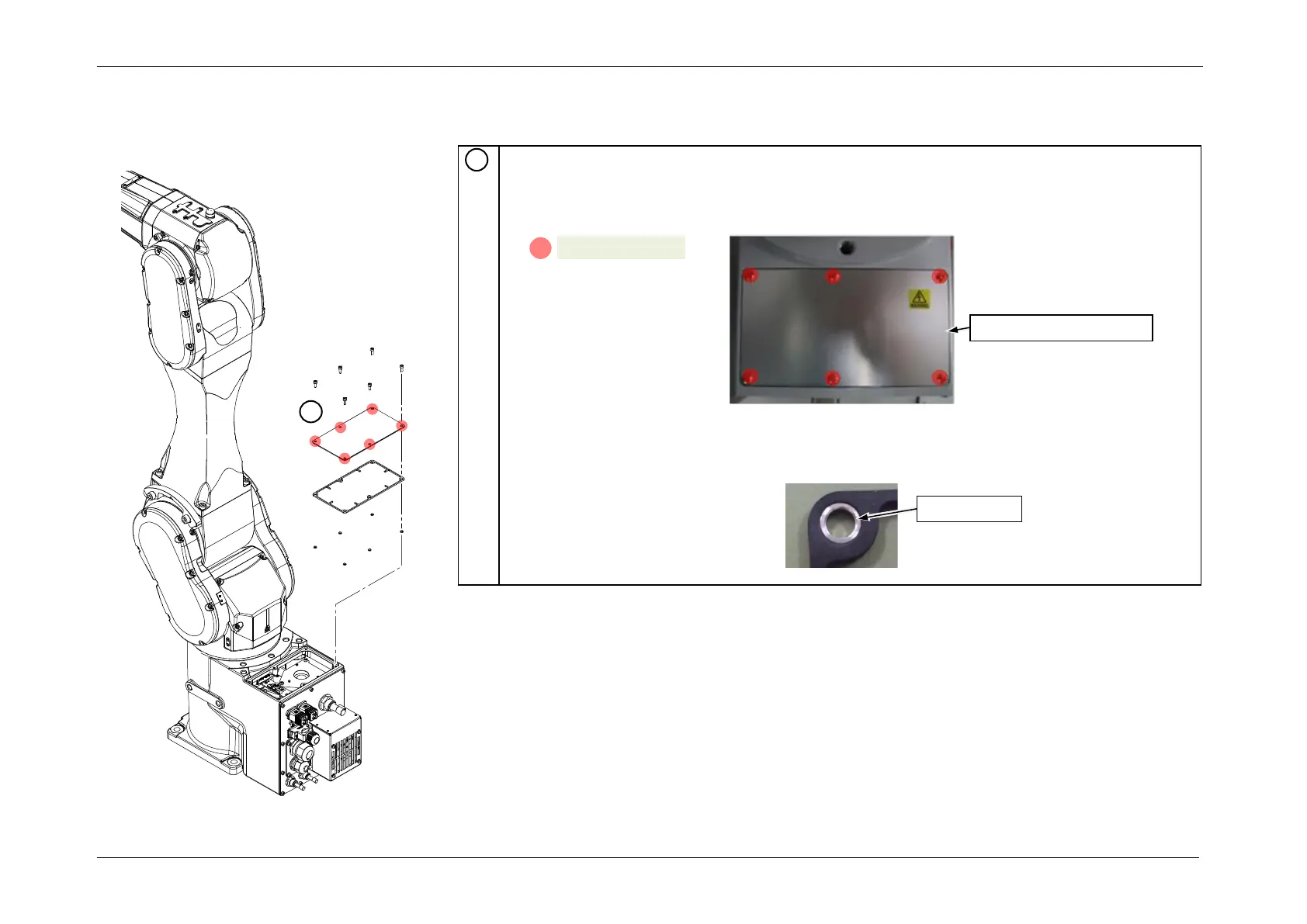

Remove the Base Maintenance Cover.
POINT
When removing the Base Maintenance Cover, also remove the base maintenance gasket.
CAUTION
The Rubber Gasket has spacers. Be careful not to lose these spacers.
1
Spacer
S01: 6-M4x10
A
Base Maintenance Cover
1
