B. Installation
Install the spacers on the holes in the Rubber Gasket. (6 places)
Apply the liquid gasket to the base maintenance gasket, and secure the base rear gasket
to the base cover.
POINT
• After applying the liquid gasket, leave it until the liquid gasket becomes solid and the
Rubber Gasket is fixed.
• If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the Base Maintenance Cover.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.

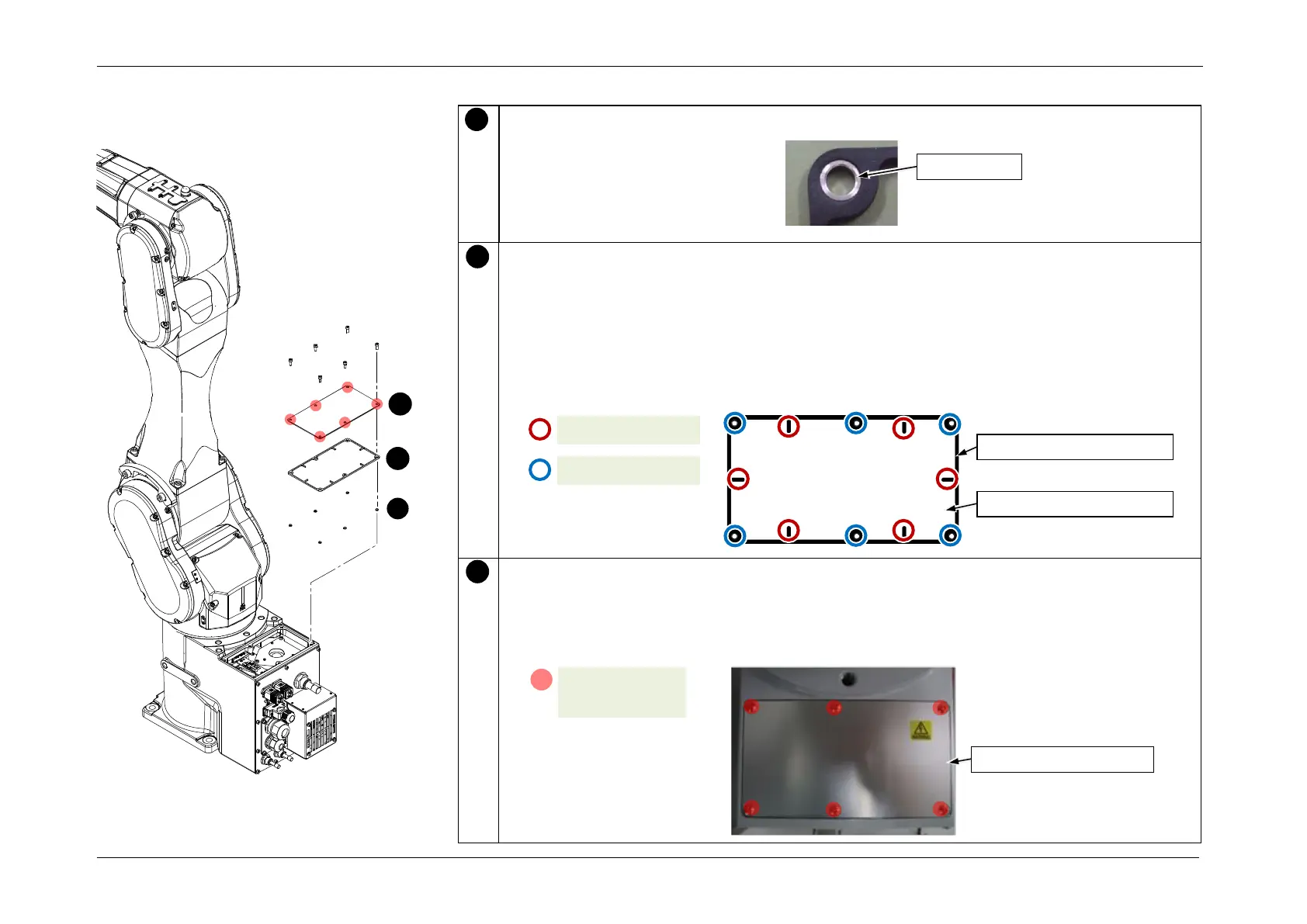

1
Spacer
2
Gasket applying
position
Spacer
Base maintenance gasket
Base maintenance plate
3
S01: 6-M4x10
(4.0 +/- 0.2 N⋅m)
A
Base Maintenance Cover
3
2
1
