C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-331 Rev.1
Protection Model
A. Removal

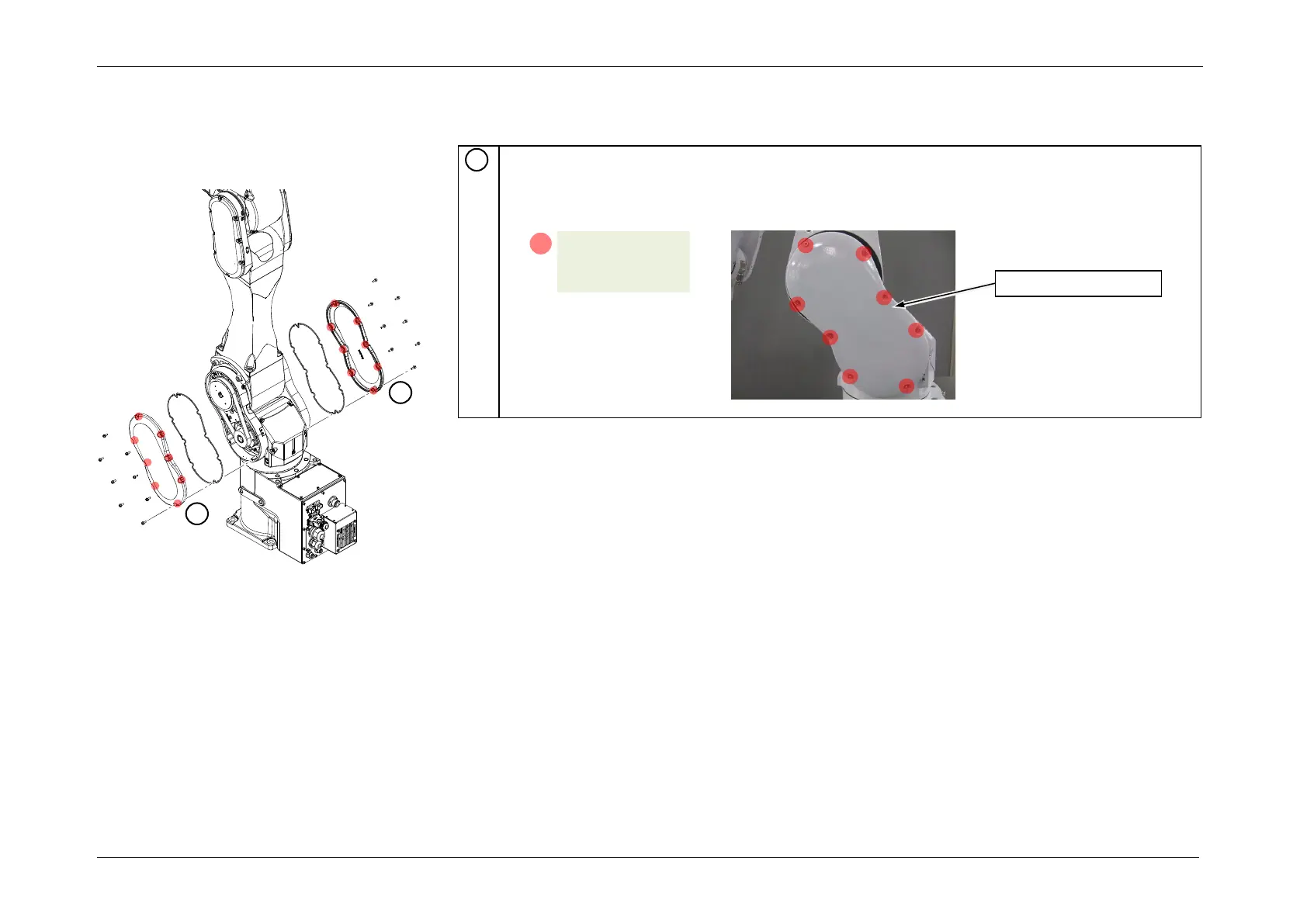

Remove the Arm1 side cover.
POINT
When removing the Arm1 side cover, also remove the Arm1 side gasket.
1
S01: 8-M4x12
with washer
A
Arm1 side cover
1
1
