B. Installation

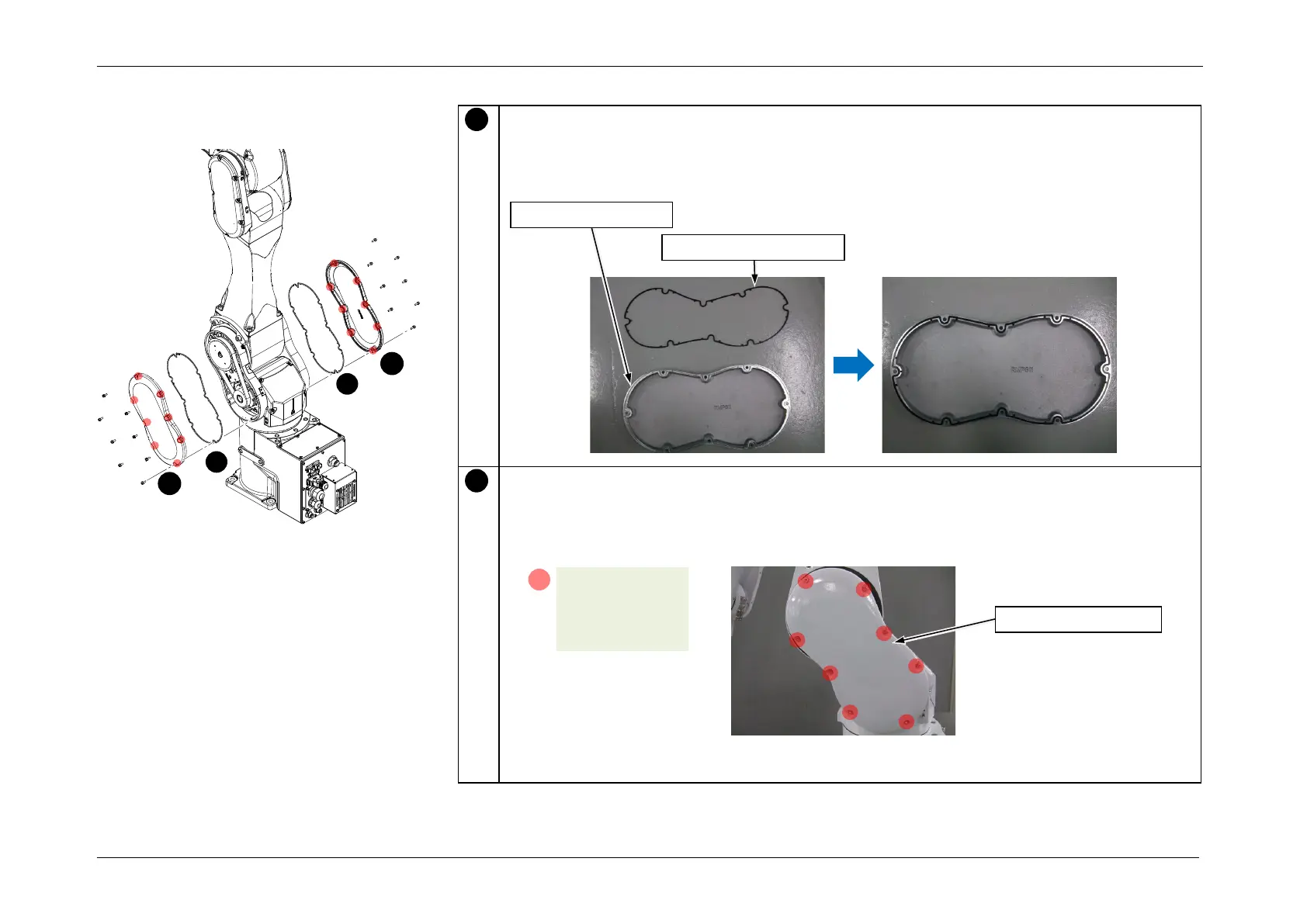

Install the Arm1 side gasket in the groove on the Arm1 side cover.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the Arm1 side cover on the Manipulator.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
1
Arm1 side cover
Arm1 side gasket
2
Arm1 side cover
S01: 8-M4x12
with washer
(4.0 +/- 0.2 N·m)
A
2
1
1
2
