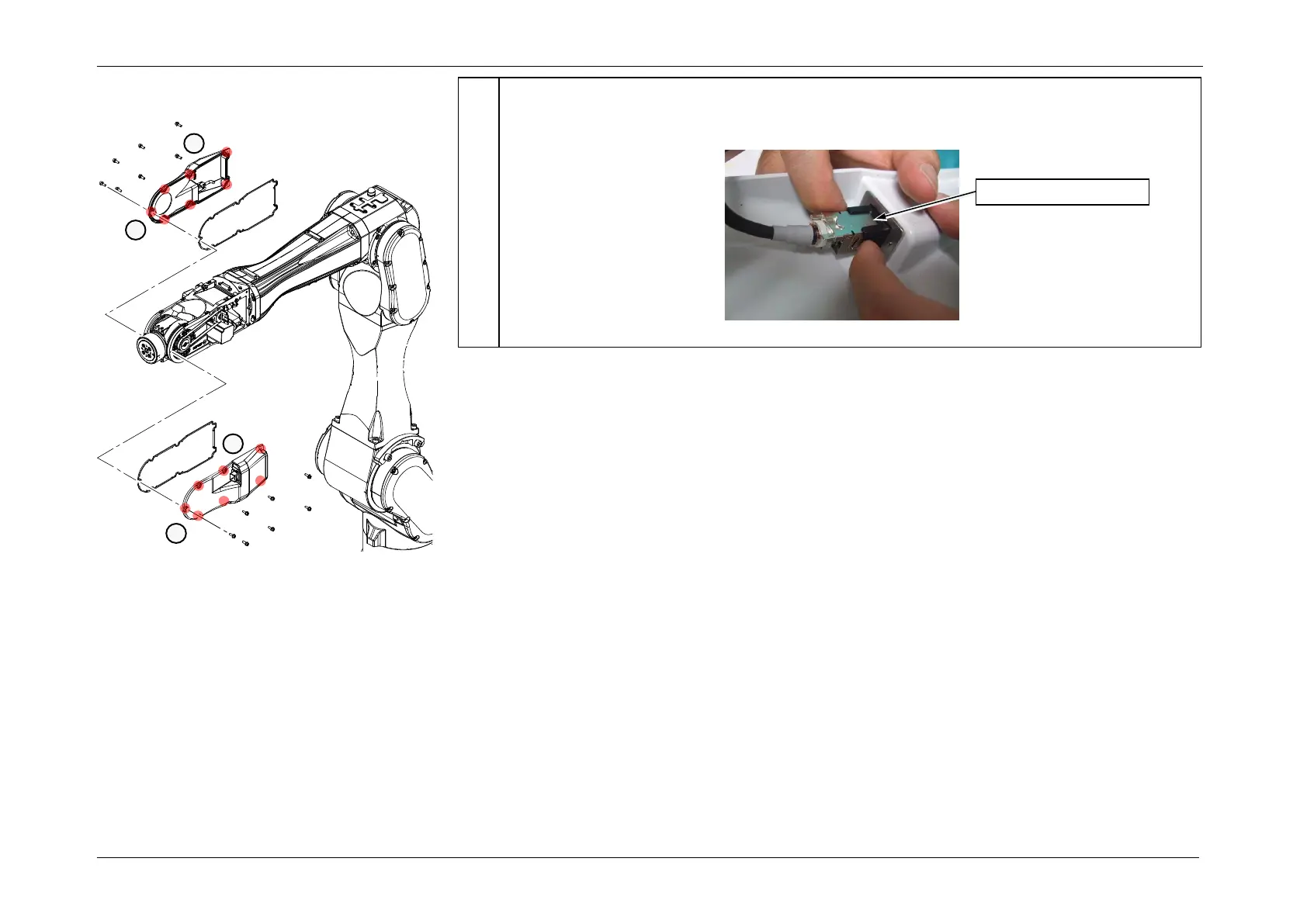

• Cover (right): F-sensor connector
Open the two plastic clips of the connector on the cover and pull out the metallic
connector.
F-sensor connector
1
1
2
2
Removal
