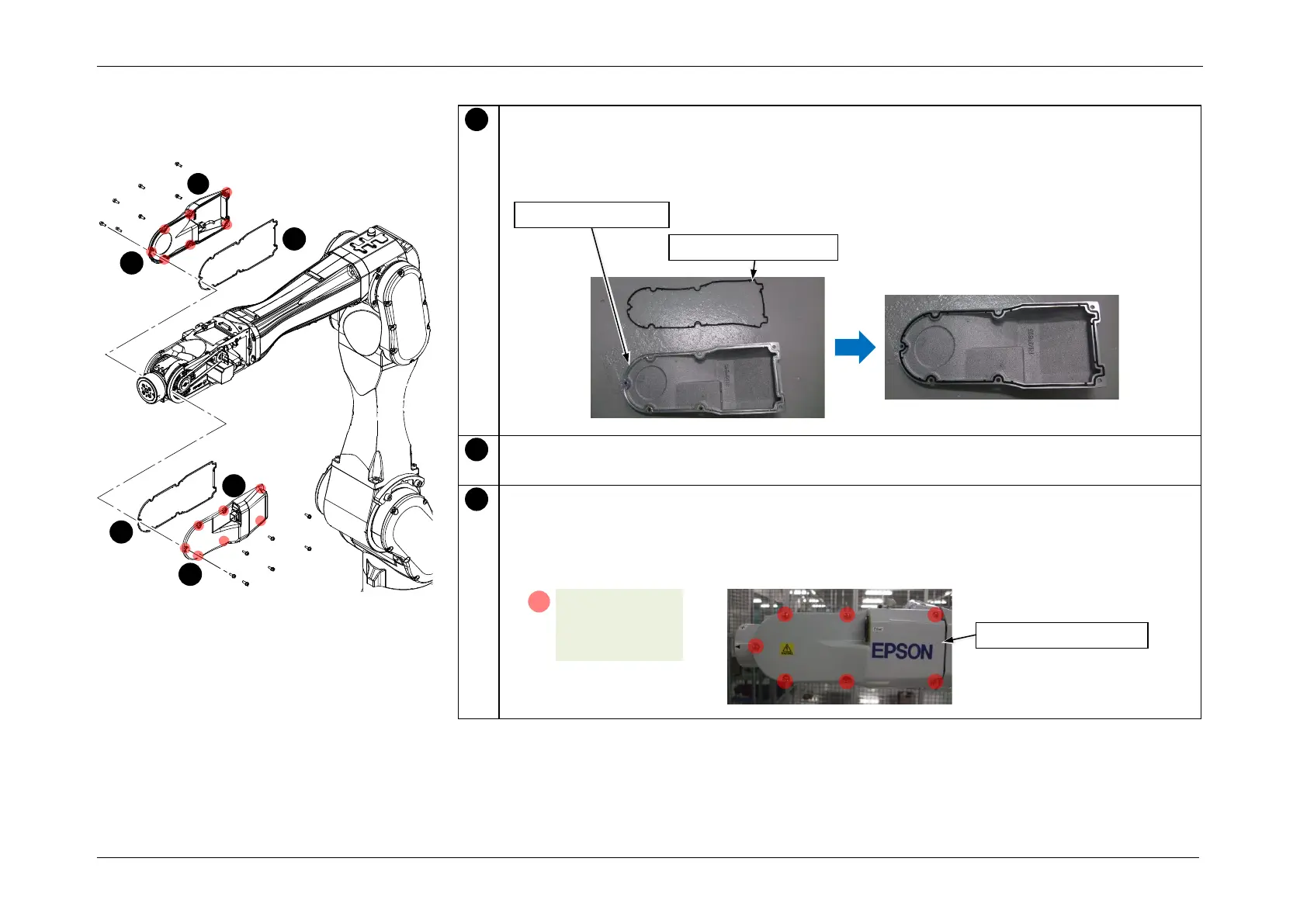

B. Installation
Install the Arm4 side gasket in the groove on the Arm4 side cover.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Insert the connectors (RJ45 connector/F-sensor connector).
Install the Arm4 side cover on the Manipulator.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
1
Arm4 side cover
Arm4 side gasket
2
3
S01: 7-M4x12
with washer
(4.0 ± 0.2 N·m)
A
Arm4 side cover
3
3
1
2
2
1
