Protection Model
A. Removal

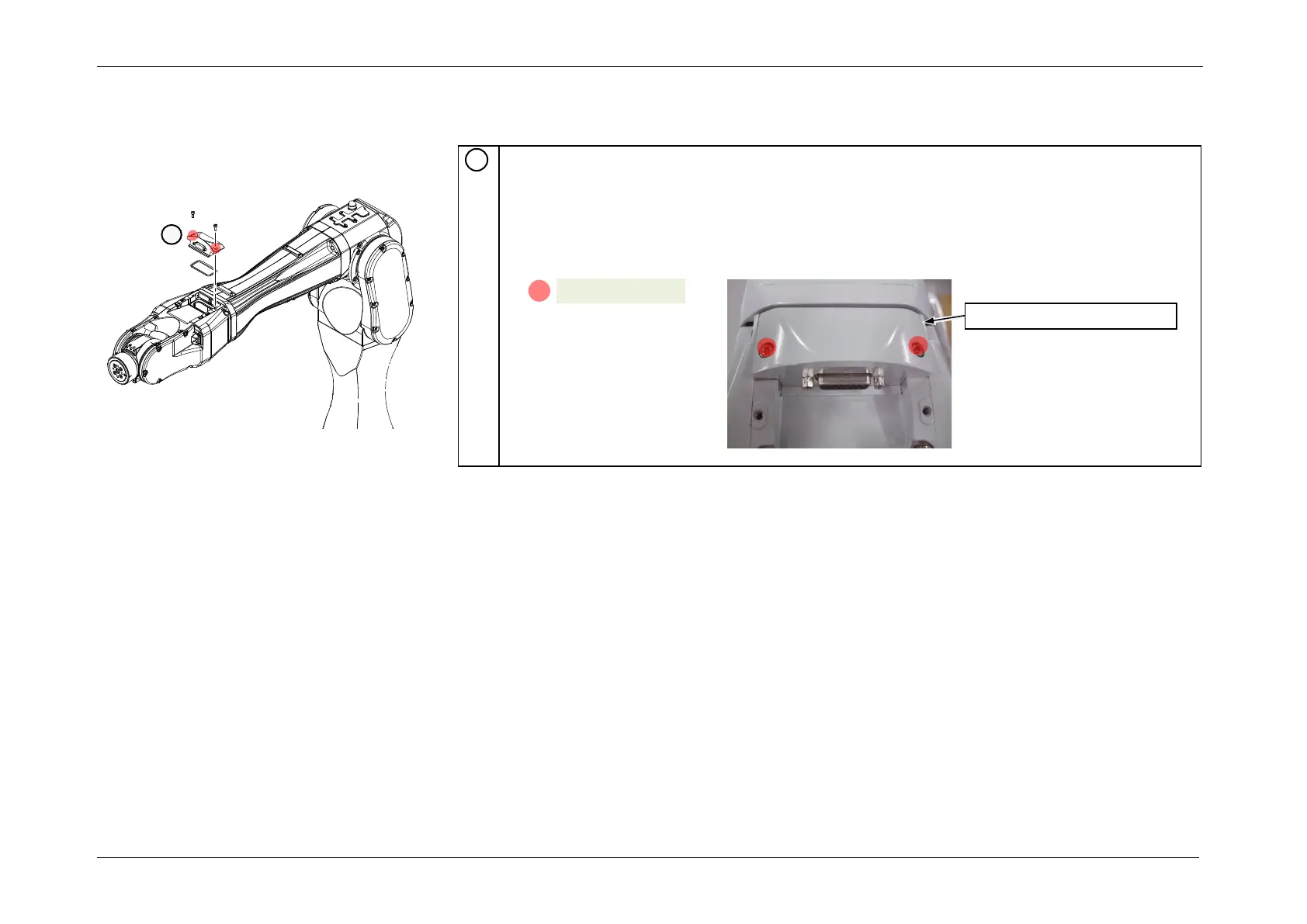

Remove the Arm4 D-sub attachment.
CAUTION
Cables are connected internally, so do not pull with force when removing.
POINT
When removing the D-sub attachment, also remove the D-sub attachment gasket.
1
S01: 2-M4x10
A
Arm4 D-sub attachment
1
