B. Installation

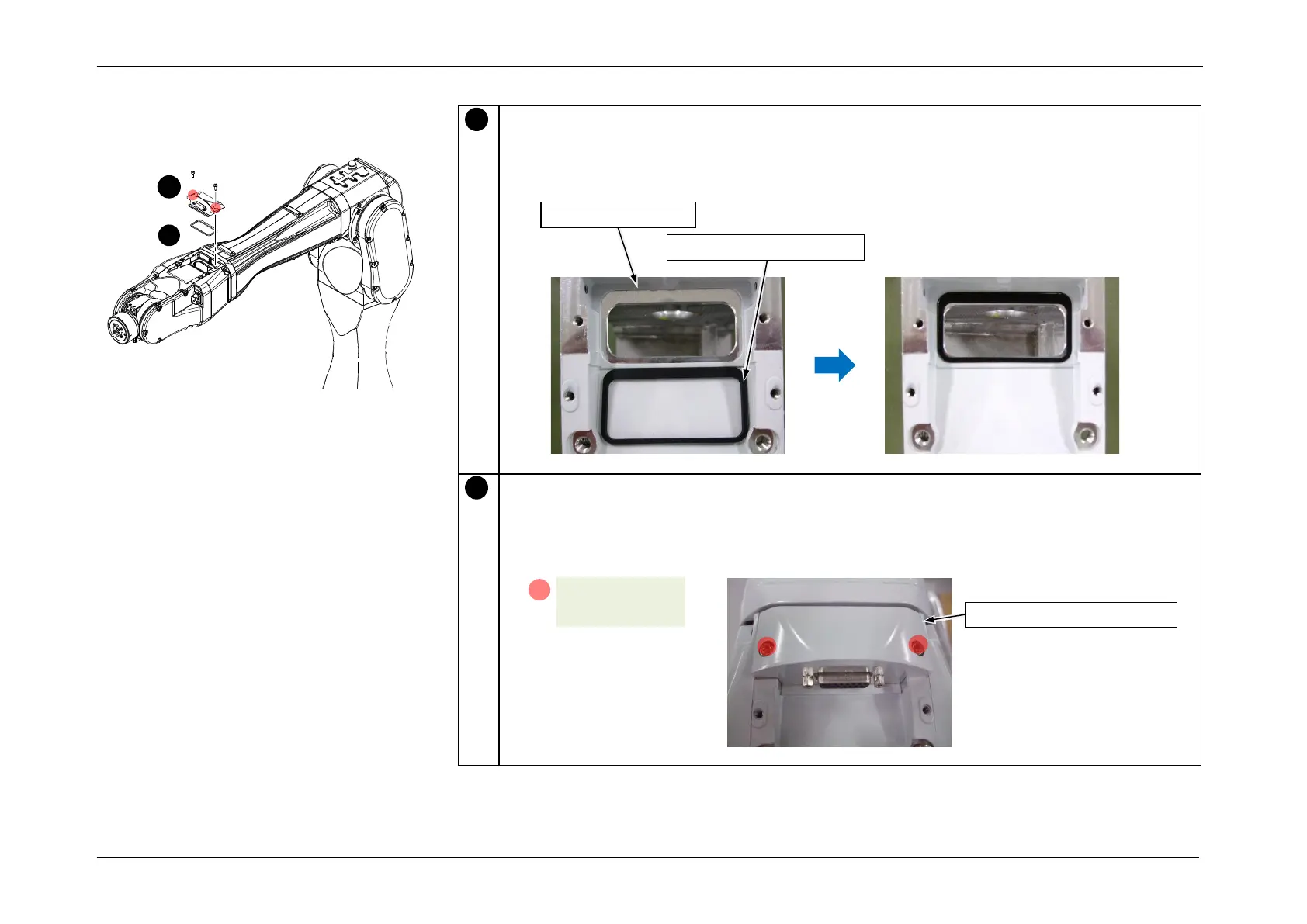

Install the D-sub attachment gasket in the groove on the D-sub attachment.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Install the D-sub attachment.
CAUTION
When installing the attachment, be careful not to pinch the Rubber Gasket or cables. Also,
do not bend or push the cables in using excessive force.
1
D-sub attachment
D-sub attachment gasket
2
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Arm4 D-sub attachment
2
1
