C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-361 Rev.1
B. Installation
CAUTION
When installing the Connector Plate, do not nip the Rubber Gasket or cables, or bend and
push them in using excessive force. It may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result in electric shock
and/or improper function of the robot system.

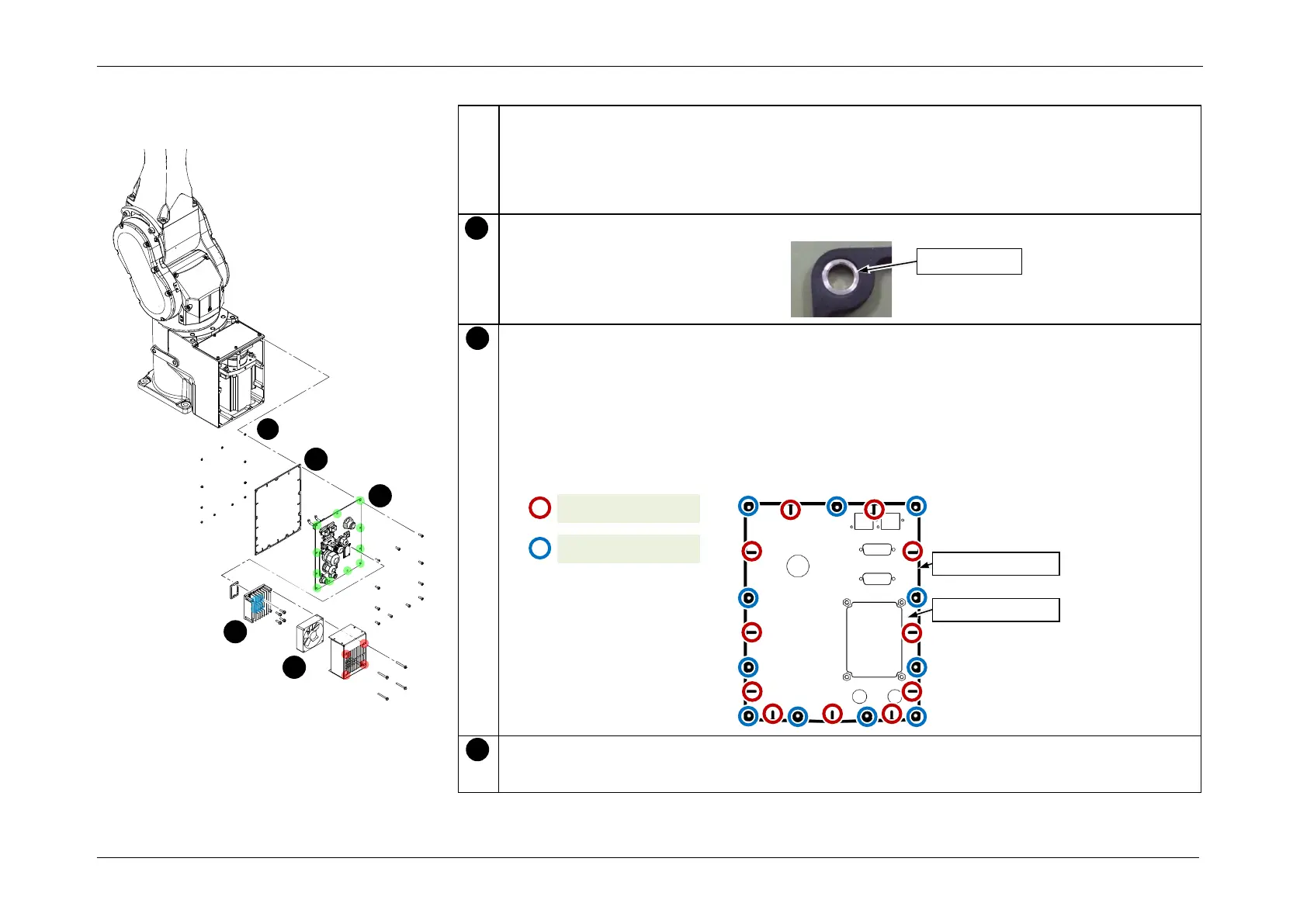

Install the spacers on the holes in the Rubber Gasket. (11 places)
Apply the liquid gasket to the base rear gasket, and secure the base rear gasket to the
Connector Plate.
POINT
• After applying the liquid gasket, leave it until the liquid gasket becomes solid and the
Rubber Gasket is fixed.
• If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
Connect cables to the Connector Plate.
1
Spacer
2
Gasket applying
position
Spacer
Connector Plate
Base rear gasket
3
1
4
2
5
6
