C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-371 Rev.1

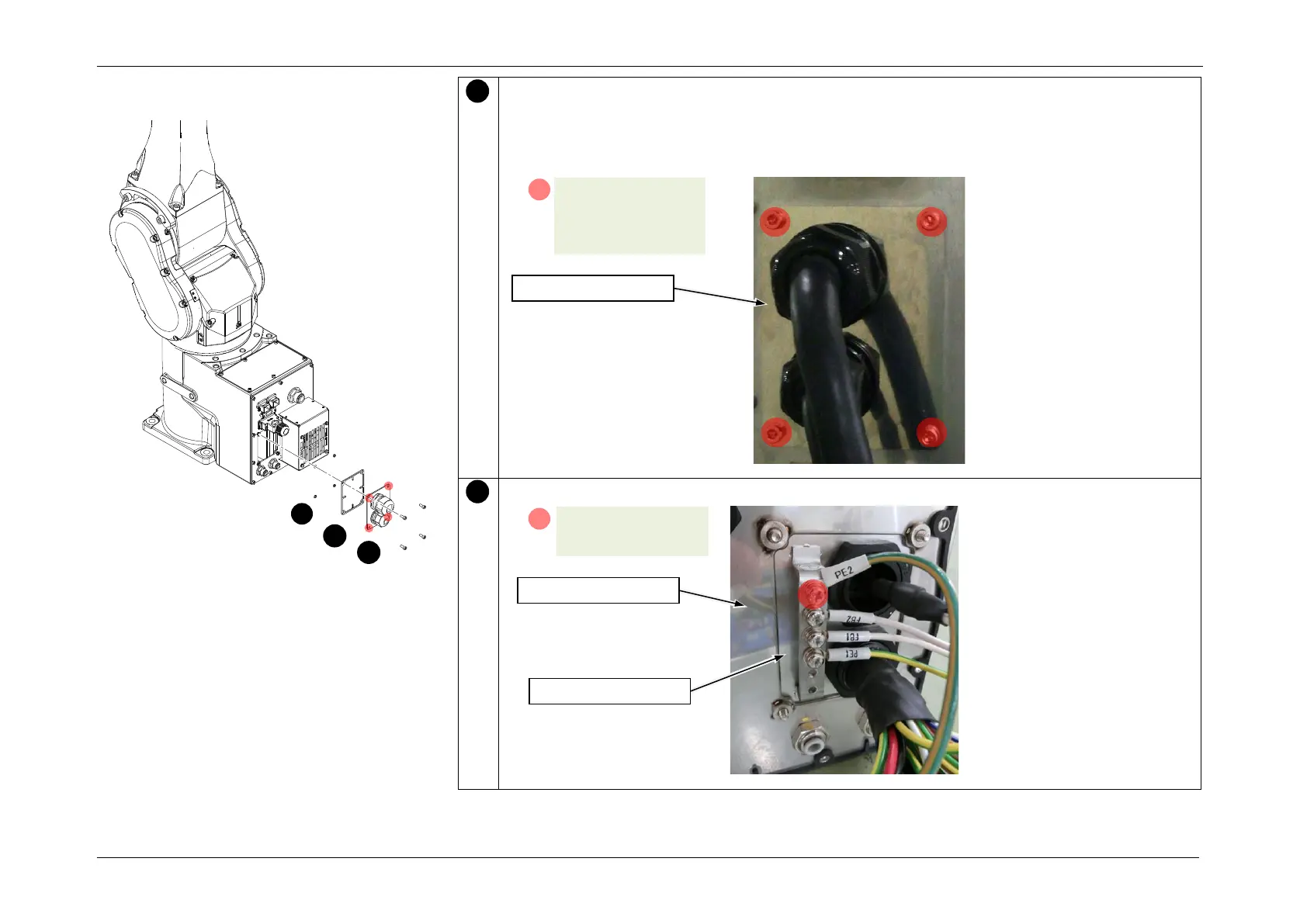

Install the connector sub plate.
CAUTION
When installing the plate, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
Connect the Ground Wire (PE2).
3
A
Connector sub plate
S01: 4-M4x10
with seal washer
(4.0 +/- 0.2 N⋅m)
4
S04: 1-M4x6
(0.9 +/- 0.1 N·m)
A
Connector plate
Connector sub plate
2
1
3
Installation
