C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-370 Rev.1

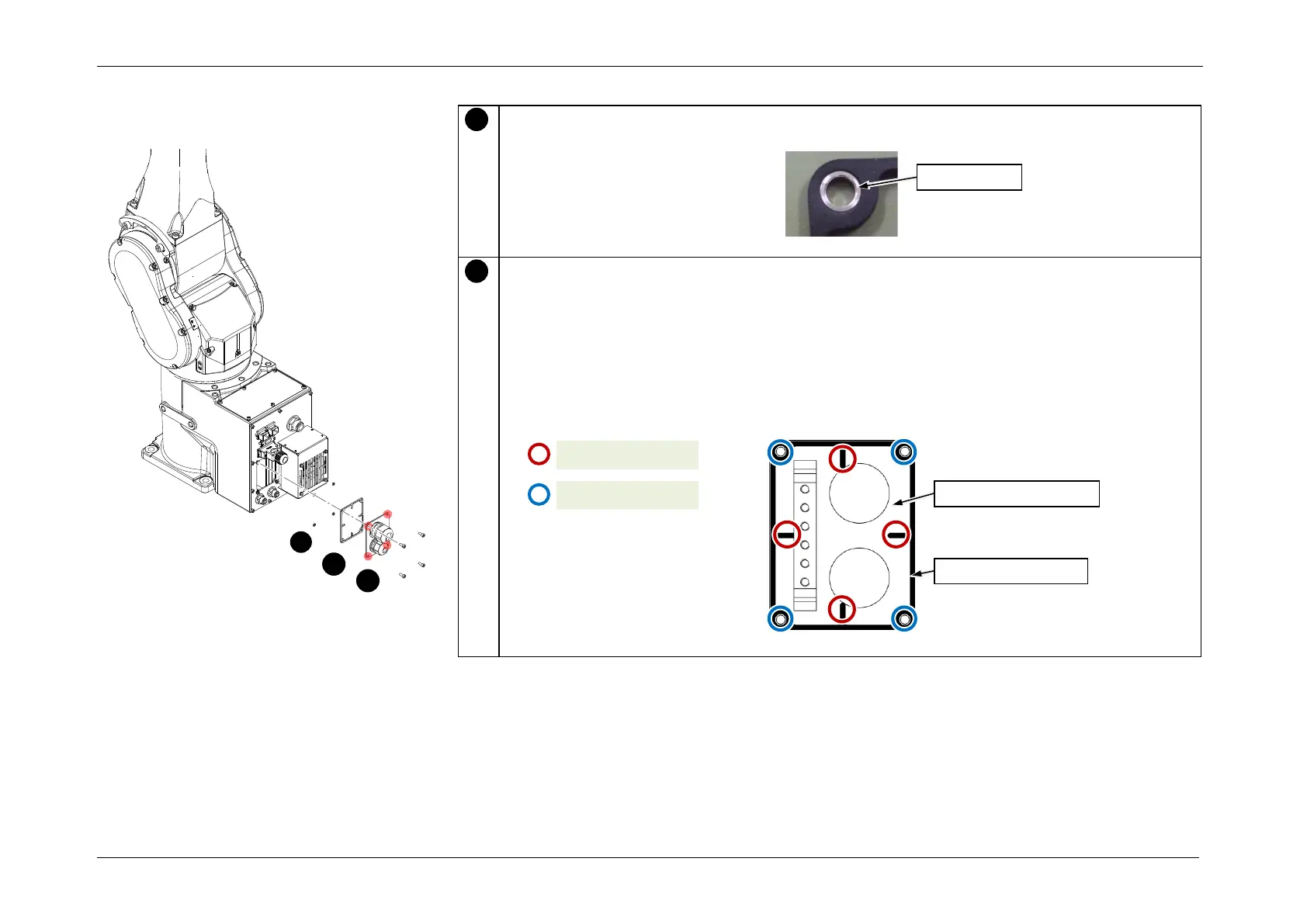

B. Installation
Install the spacers on the holes in the Rubber Gasket. (4 places)
Apply the liquid gasket to the base sub plate gasket, and secure the base sub plate gasket
to the connector sub plate.
POINT
• After applying the liquid gasket, leave it until the liquid gasket becomes solid and the
Rubber Gasket is fixed.
• If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.
1
Spacer
2
Connector sub plate
Sub plate gasket
Gasket applying
position
Spacer
2
1
3
