C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-369 Rev.1

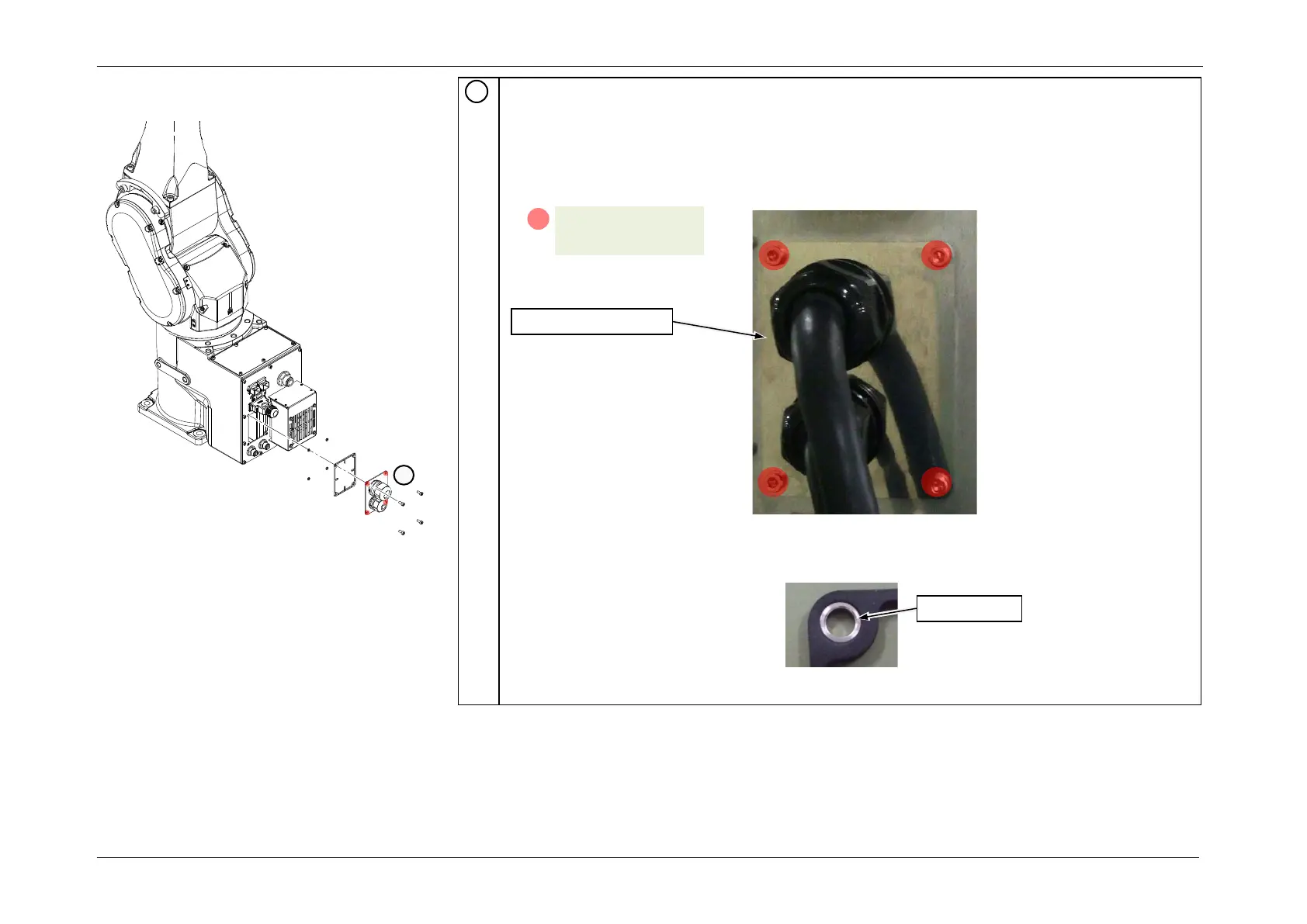

Remove the connector sub plate.
CAUTION
Cables are connected internally, so do not pull with force when removing.
POINT
When removing the connector sub plate, also remove the base sub plate gasket together.
CAUTION
• The Rubber Gasket has spacers. Be careful not to lose these spacers.
• Be careful not to lose the seal washers.
3
Spacer
S01: 4-M4x10
with seal washer
A
Connector sub plate
3
Removal
