C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-368 Rev.1

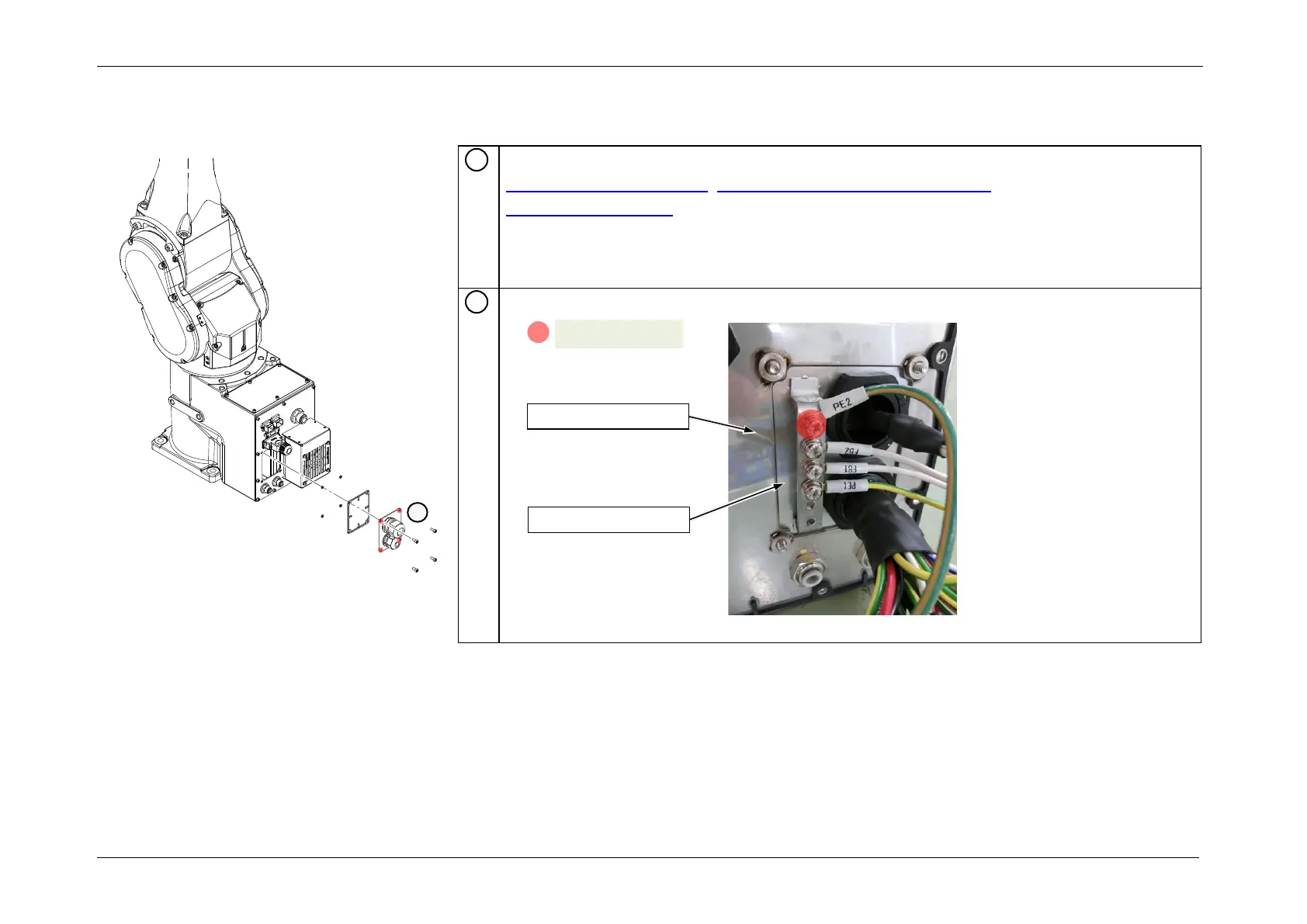

Protection Model
A. Removal
Remove the Connector Plate.
M/C Cable Backward: C8L, M/C Cable Backward: C8XL, C12XL,
M/C Cable Downward
CAUTION
Attempting to remove the connector sub plate alone while the connectors are still
connected may damage the cables.
Disconnect the Ground Wires (PE2).
1
2
S04: 1-M4x6
A
Connector Plate
Connector sub plate
3
