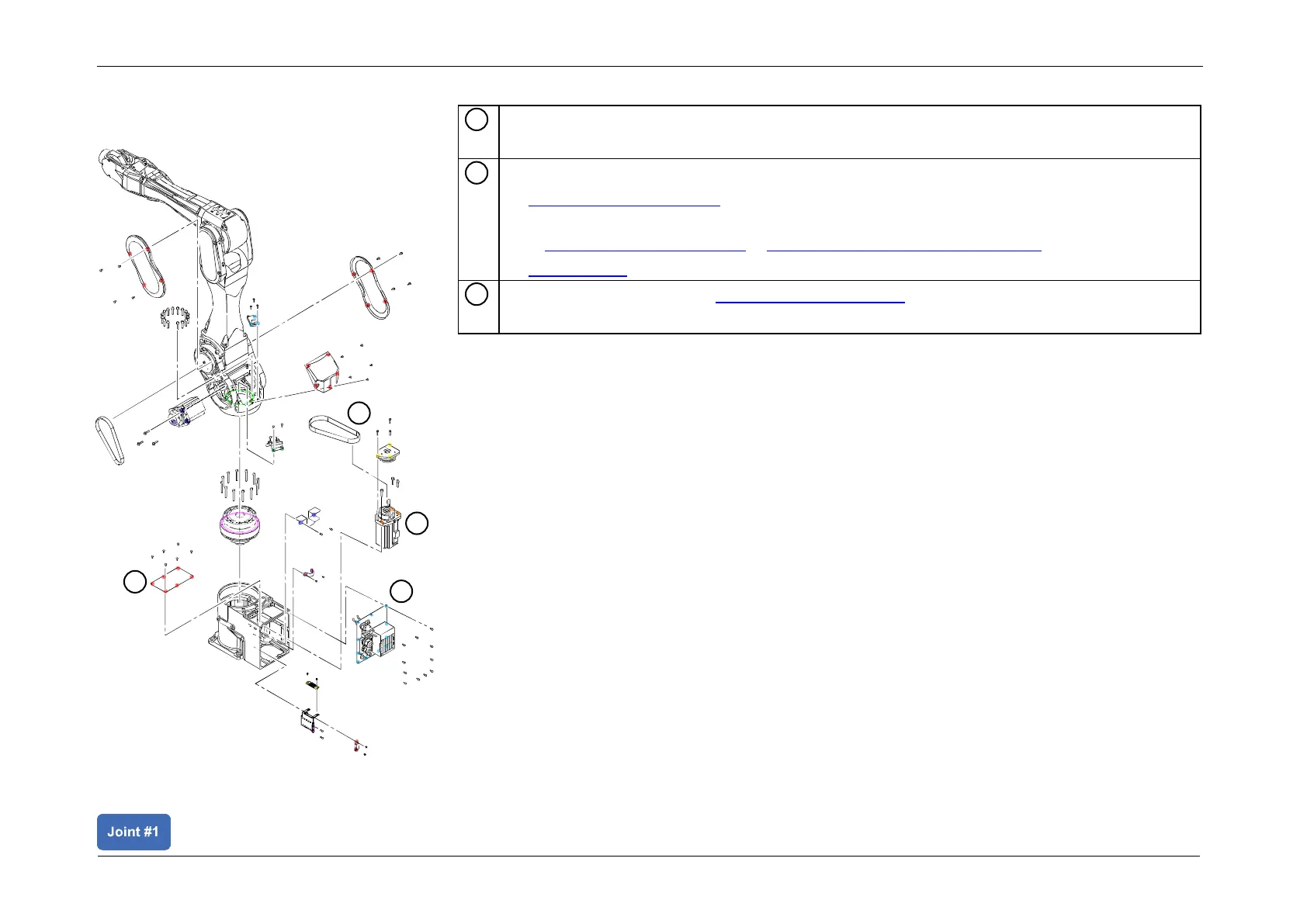

Removing the Timing Belt
Turn OFF the Controller.
Remove the following parts.
• Base Maintenance Cover
• Connector Plate
(M/C Cable Backward: C8L), (M/C Cable Backward: C8XL, C12XL)
• J1 Motor unit
Perform steps  and  of Removing the Cable Unit, and remove the J1 Timing Belt.
1
2
3
2
2
2
3
