C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-6 Rev.1

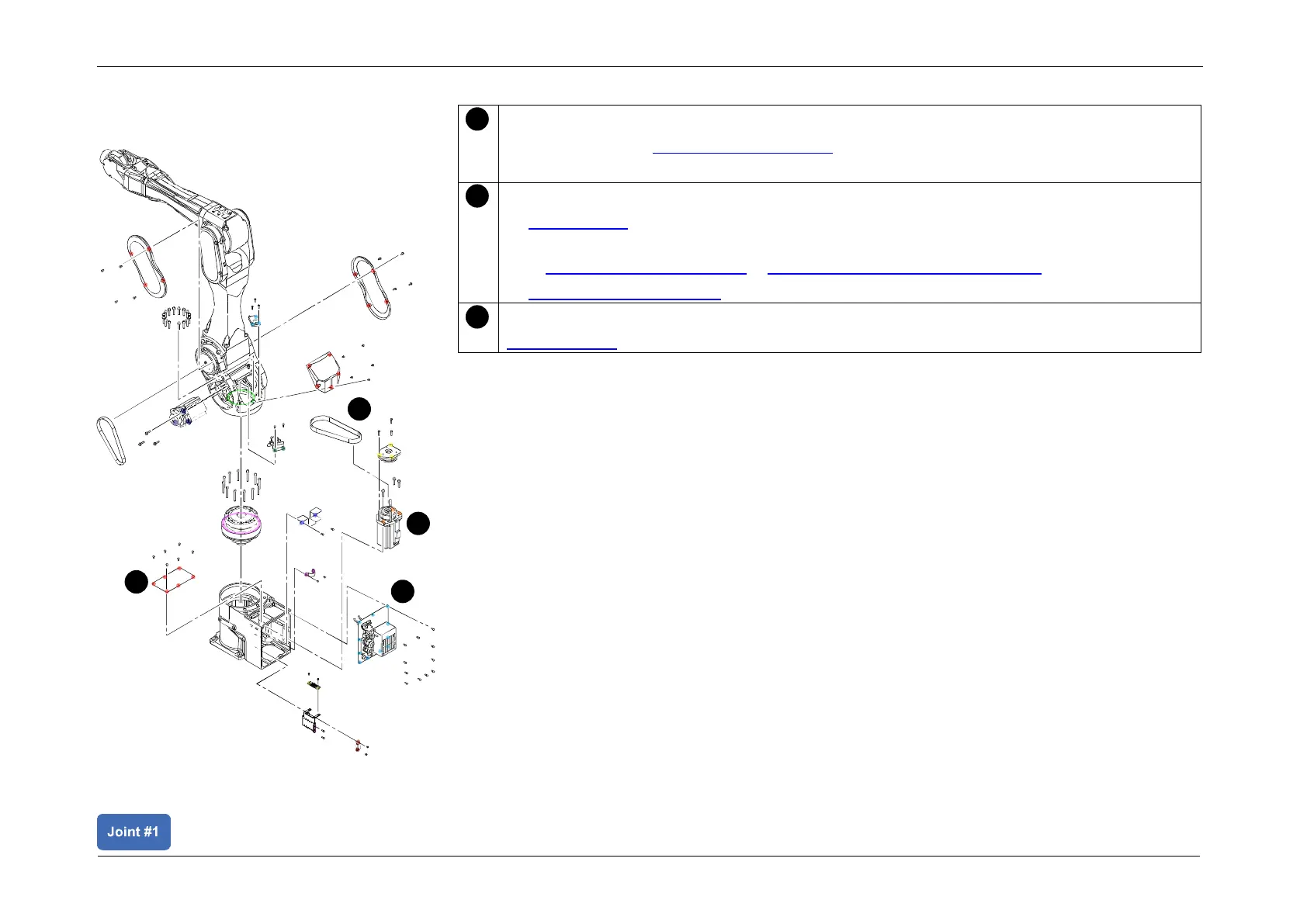

Installing the Timing Belt
Assemble the J1 Timing Belt and Cable Unit.
Perform step  of Installing the Cable Unit.
Install the following parts.
• J1 Motor unit
• Connector Plate
(M/C Cable Backward: C8L), (M/C Cable Backward: C8XL, C12XL)
• Base Maintenance Cover
After assembly, perform calibration of Joint #1.
3.2 Calibration
1
2
3
2
2
2
1
