C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-15 Rev.1
<C8XL/C12XL only>

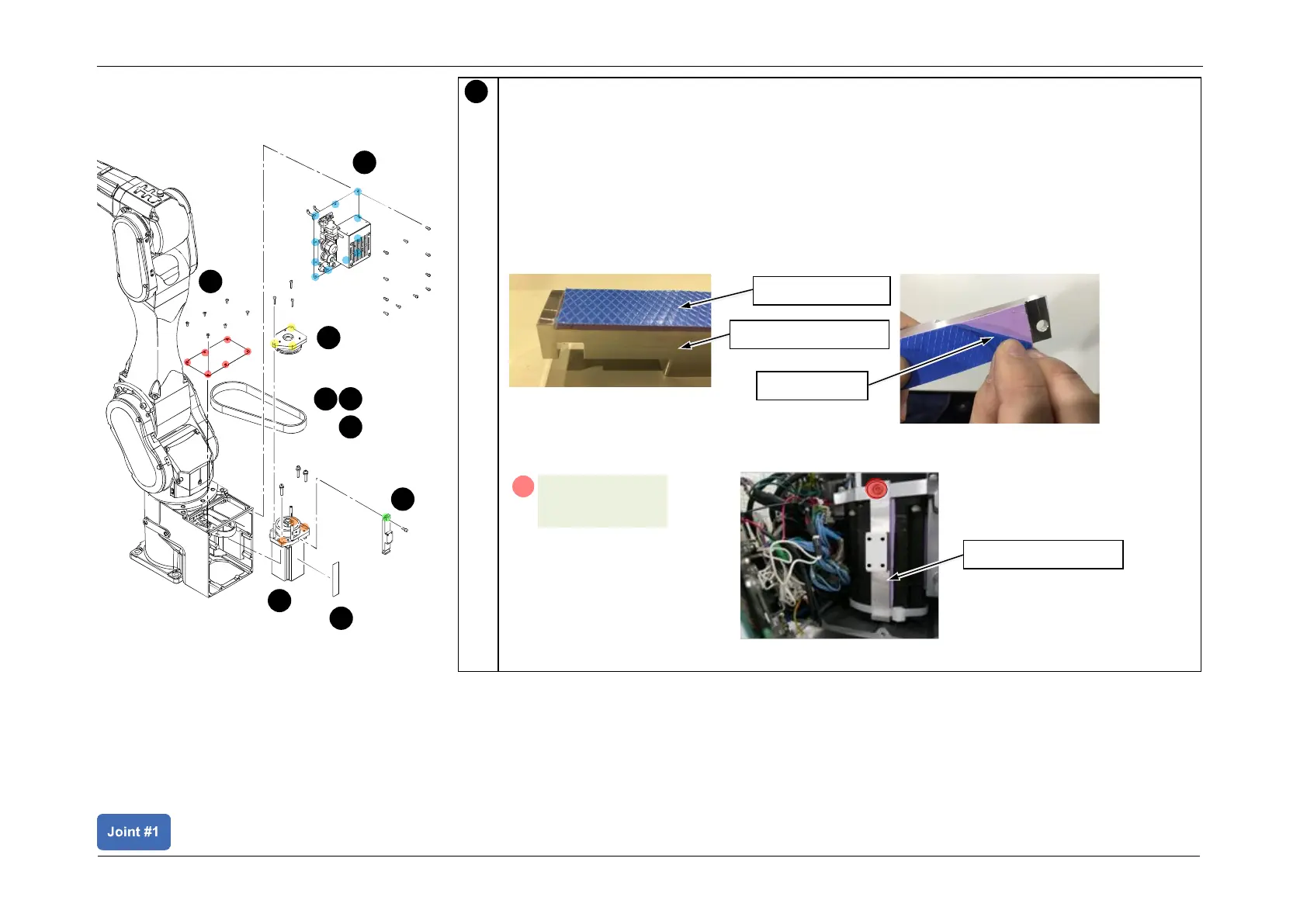

If the Heat Radiation Block has been removed, install using the following procedure.
1. Check that the Radiation Sheet is applied to the Heat Radiation Block.
If a protective film is applied to the Radiation Sheet, remove the film.
CAUTION
Operating the Manipulator without the Radiation Sheet in place may result in heating of the
motor thus generating an error.
2. Install the Heat Radiation Block.
2
S01: 1-M5x15
(8.0 +/- 0.4 N⋅m)
A
Heat Radiation Block
Heat Radiation Block
Radiation Sheet
Protective film
Installing the Motor Unit
10
9
2
7
4
1
2
5
6
