3. Insert the end of the wire tie (AB350) in the gap under the motor.
4. Hold the end of the wire tie.
5. While holding the end of the wire tie, push in the wire tie in the direction of the arrow.
Wire tie
Wire tie
Wire tie

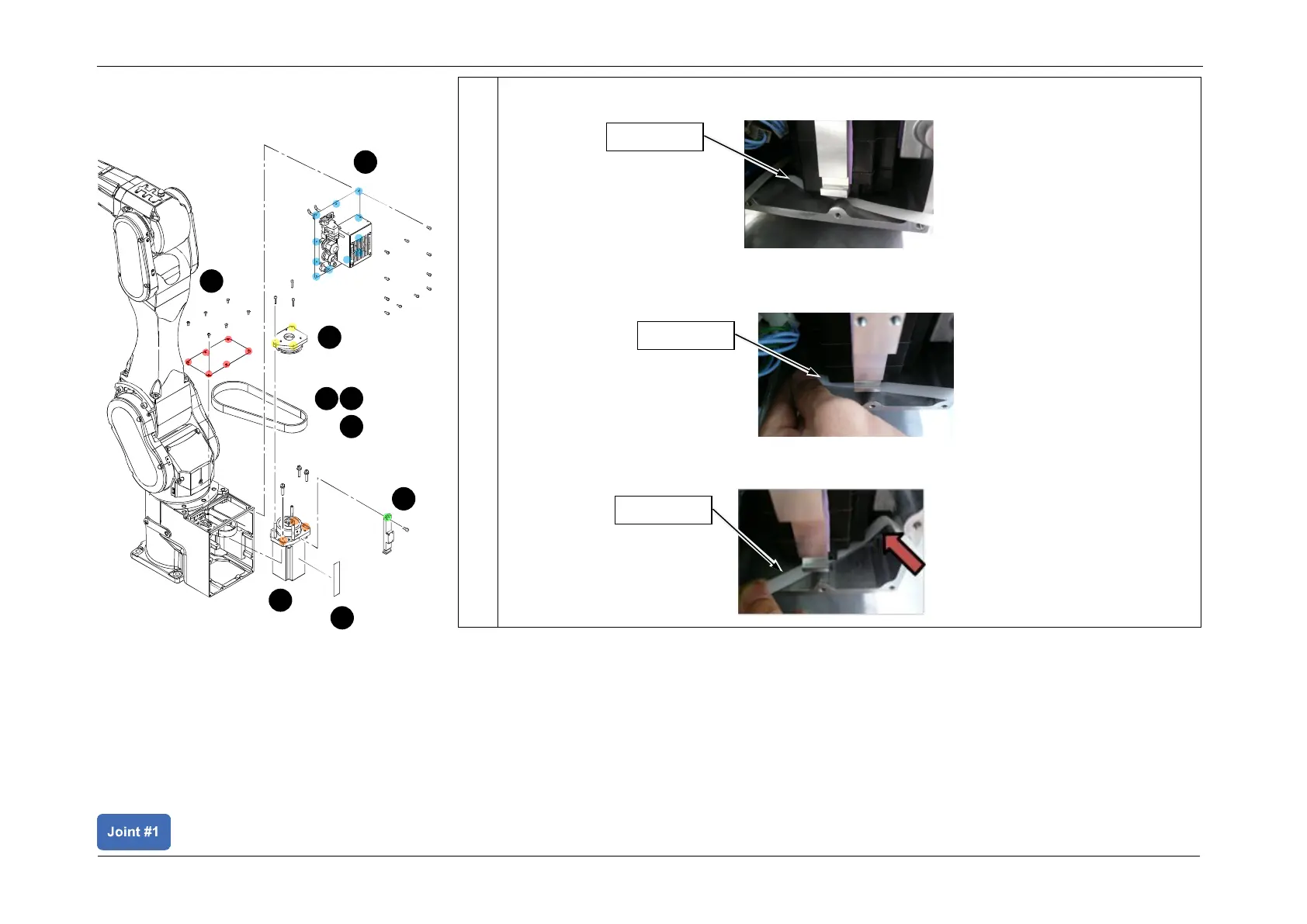

Installing the Motor Unit
10
9
2
7
4
1
2
5
6
