C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-17 Rev.1
6. Wrap the wire tie around the motor, and tighten so that the Heat Radiation Block
presses on the Motor Unit.
POINT
Tighten the wire tie to the extent that the Radiation Sheet pressed between the Heat
Radiation Block and the Motor Unit is pressed out and protrudes.
CAUTION
Tightening the wire tie with too much force may cause the motor cable to break.
Take care to not tighten the wire tie with too much force.
Adjust the belt tension.
3.1 Adjusting the Timing Belt Tension
Temporarily secure the J1 brake plate.
Secure the brake plate to the extent that it can still be moved sideways by hand.
Wire tie
Heat Radiation Block
3
4
J1 brake plate
A
S01: 3-M4x20

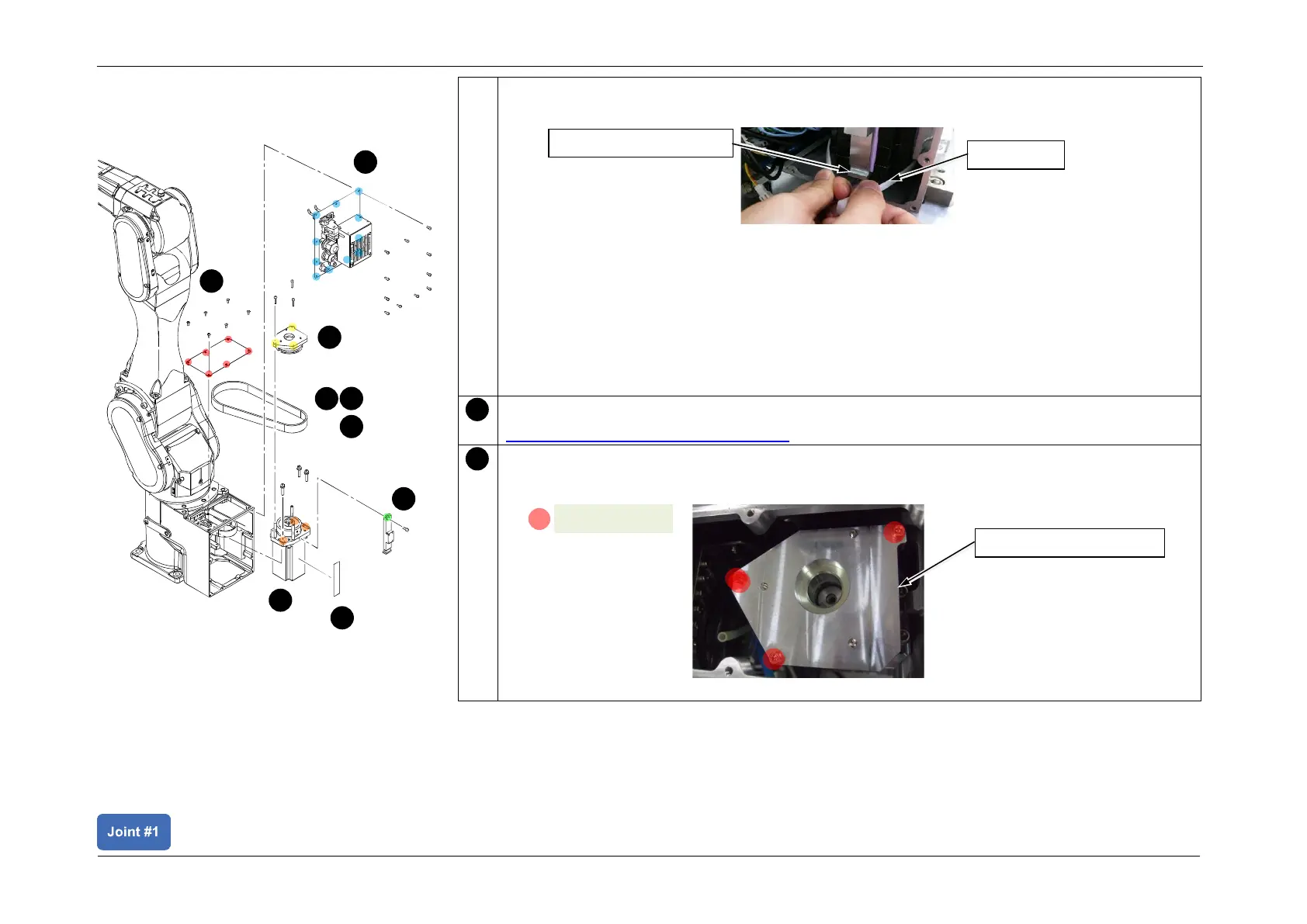

Installing the Motor Unit
10
9
2
7
4
1
2
5
6
