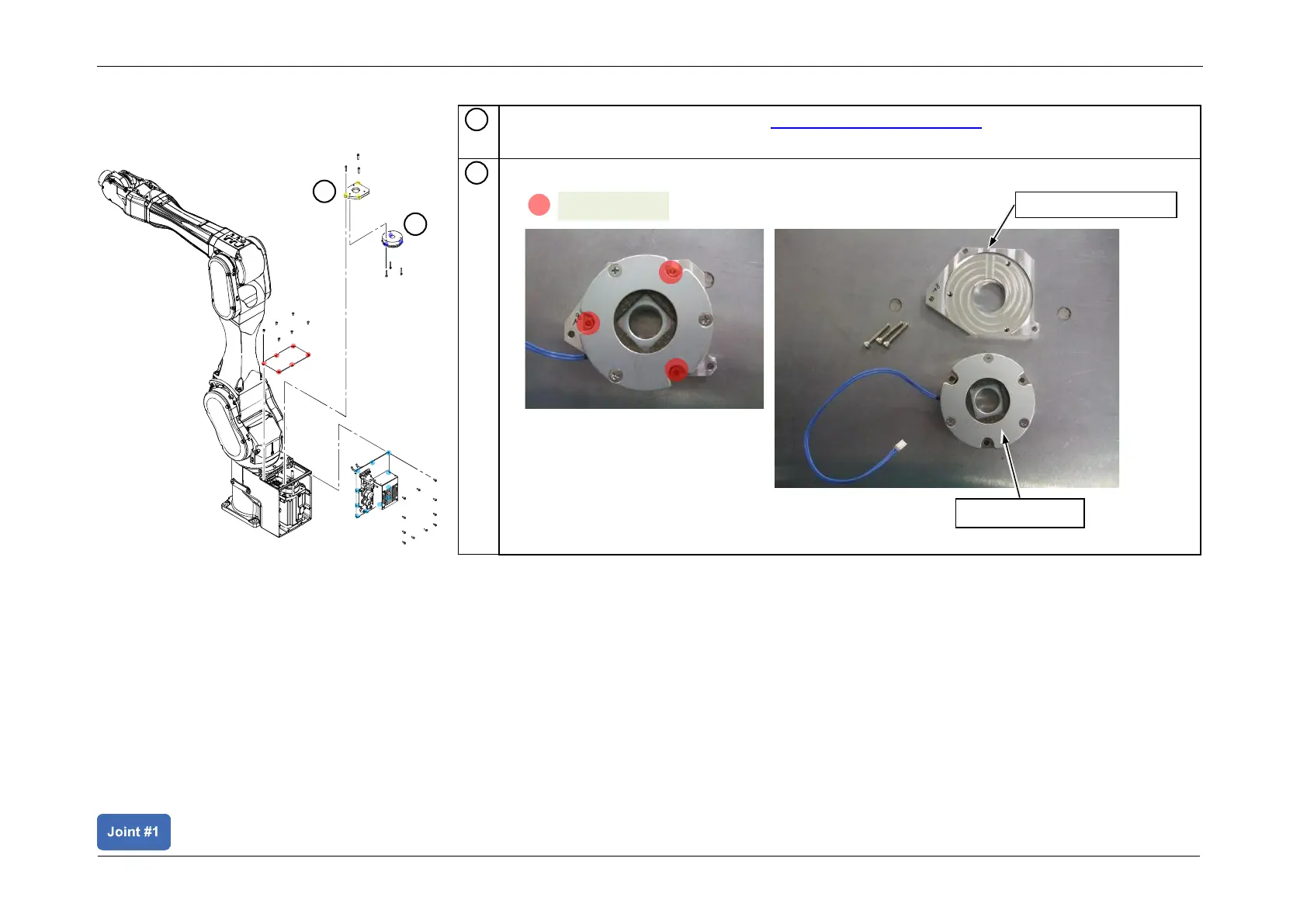

Removing the Brake
Perform steps  to ,  to  of Removing the J1 Motor Unit.
Remove the J1 brake from J1 brake plate.
1
2
A
S01: 3-M4x25
J1 brake
J1 brake plate
2
1
