C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-23 Rev.1

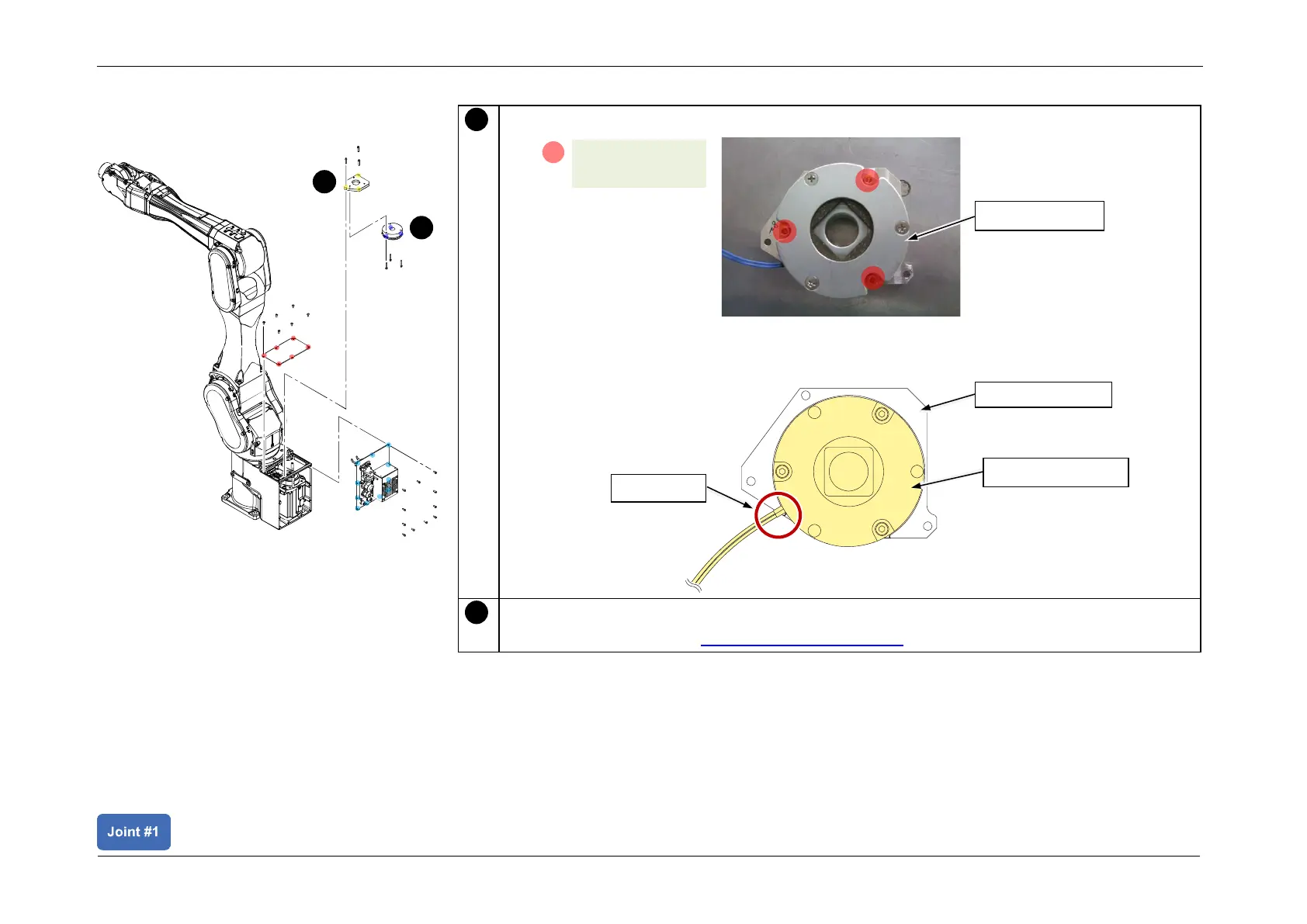

Installing the Brake
Install the J1 brake on the brake plate.
POINT
Install with the orientation shown in the figure.
Install the J1 brake plate on the J1 Motor unit.
Perform steps  to  of Installing the J1 Motor Unit.
1
Brake plate
J1 brake
Brake cable
A
S01: 3-M4x25
(4.0 +/- 0.2 N⋅m)
J1 brake
2
1
2
