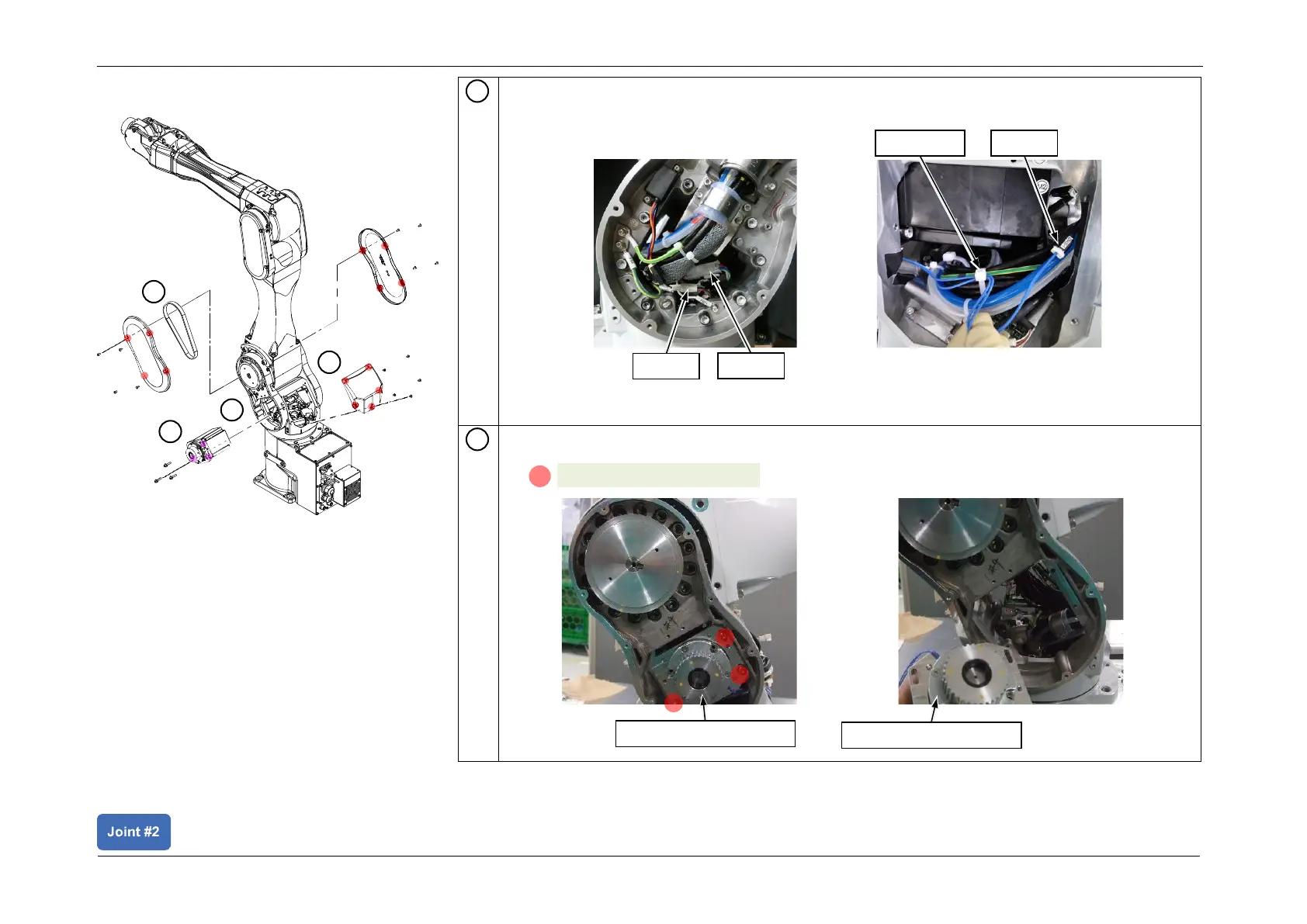

Disconnect the J2 Motor Connectors (CN121, CN321, CN420), and cut the wire tie binding
CN420.
Remove the loosened screws, then remove the J2 Motor unit.
5
CN420
Wire tie
CN121
CN321
6
J2 Motor unit
J2 Motor unit
A
S01: 3-M5x25 and washer
2
4
6
5
Removing the Motor Unit
