SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 184
Confidential
3. Remove the screw, and remove the TF ENCODER BOARD ASSY.
B) Silver M3x6 Cup S-tite screw: 1 pcs
4. Remove the FFC from the connector of the TF ENCODER BOARD.

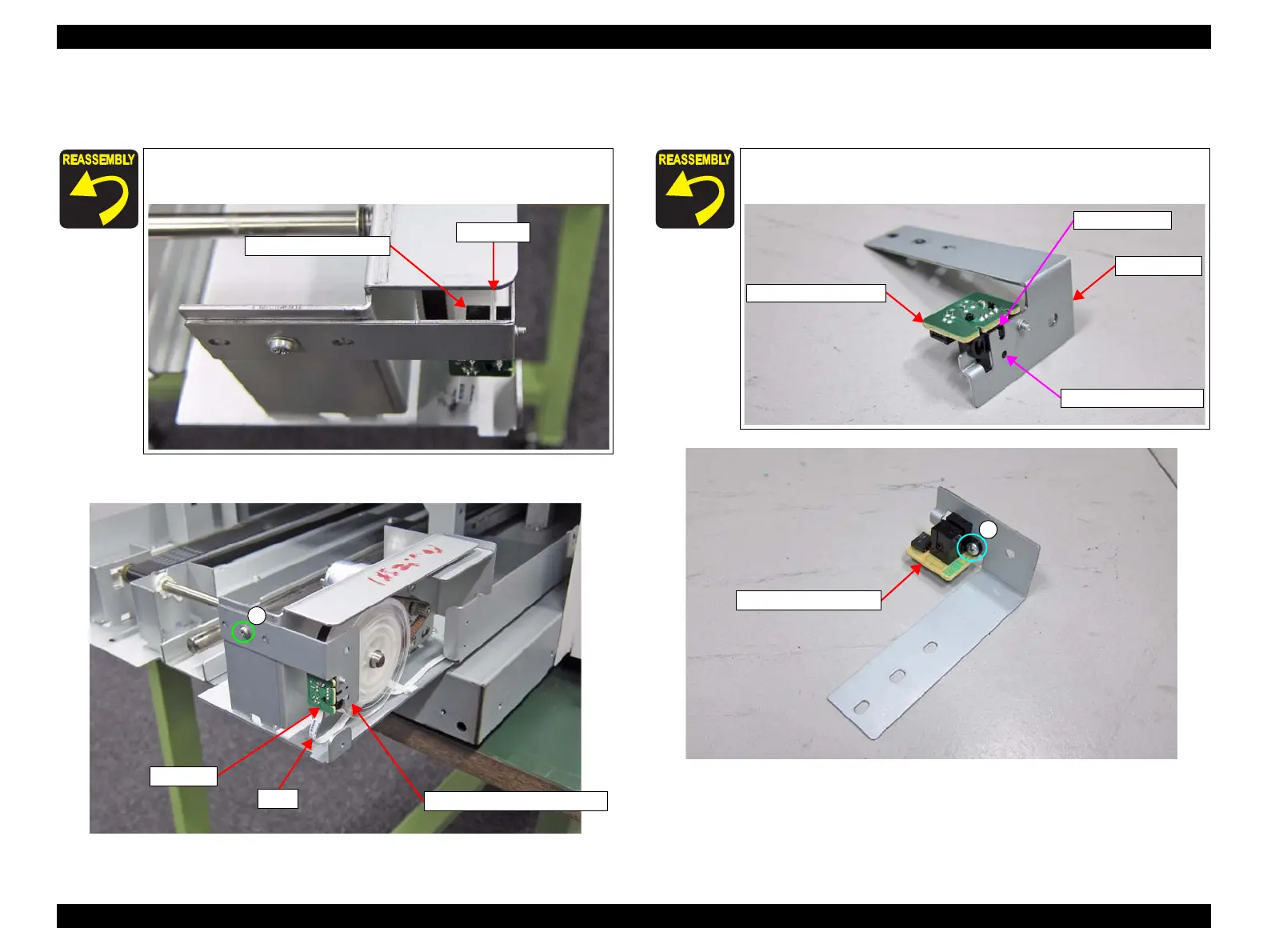

Figure 3-149. Removing the TF ENCODER BOARD ASSY
5. Remove the screw, and remove the TF ENCODER BOARD.
C) Silver M2.6x5 Bind S-tite screw: 1 pcs
Figure 3-150. Removing the TF ENCODER BOARD
After assembling the TF ENCODER BOARD ASSY, confirm that
the TF SCALE does not contact with the TF ENCODER BOARD.
TF ENCODER BOARD ASSY
B
Connector
FFC
Attach the two tabs of the TF ENCODER BOARD to the
positioning hole and groove of the Sensor frame.
TF ENCODER BOARD
Sensor frame
Tab and positioning hole
Tab and groove
To Next Page
