Epson SC-F2000 User Manual

SC-F2000 Revision C

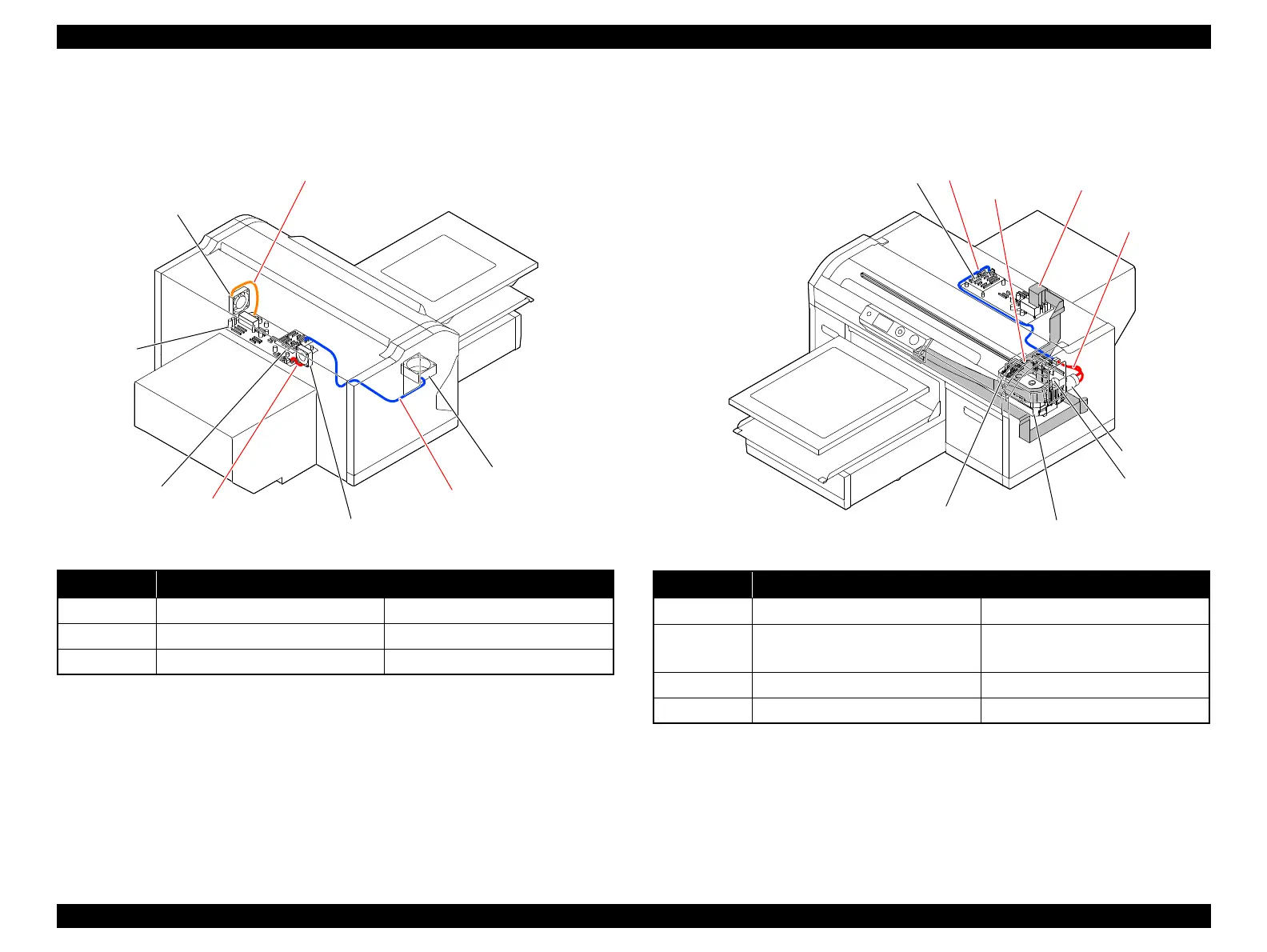

APPENDIX Connection Diagram 305
Confidential
6.2.6 Fan 6.2.7 CR Unit
Cable No. Connection
1 BOARD BOX FAN 2 MAIN BOARD (CN11)
2 BOARD BOX FAN 1 MAIN BOARD (CN10)
3 DUCT FAN ASSY SUB-B BOARD (CN13)
（1）
（2）
（3）
MAIN
BOARD
BOARD BOX
FAN 2
BOARD BOX
FAN 1
DUCT FAN
ASSY
SUB-B BOARD
Cable No. Connection
1 CR MOTOR ASSY Relay cable (No.21)
2
• PRINT HEAD
• CR SUB BOARD
MAIN BOARD
(CN100, CN101, CN102)
3 CR ENCODER SENSOR CR SUB BOARD (CN102)
4 Cable (1) SUB-B BOARD (CN5)
（1）
（2）
（3）
（4）
CR MOTOR
ASSY
SUB-B BOARD
CR SUB BOARD
CR UNIT
(PRINT HEAD)
CR ENCODER
SENSOR
