1.4.3 Part Names
FRONT

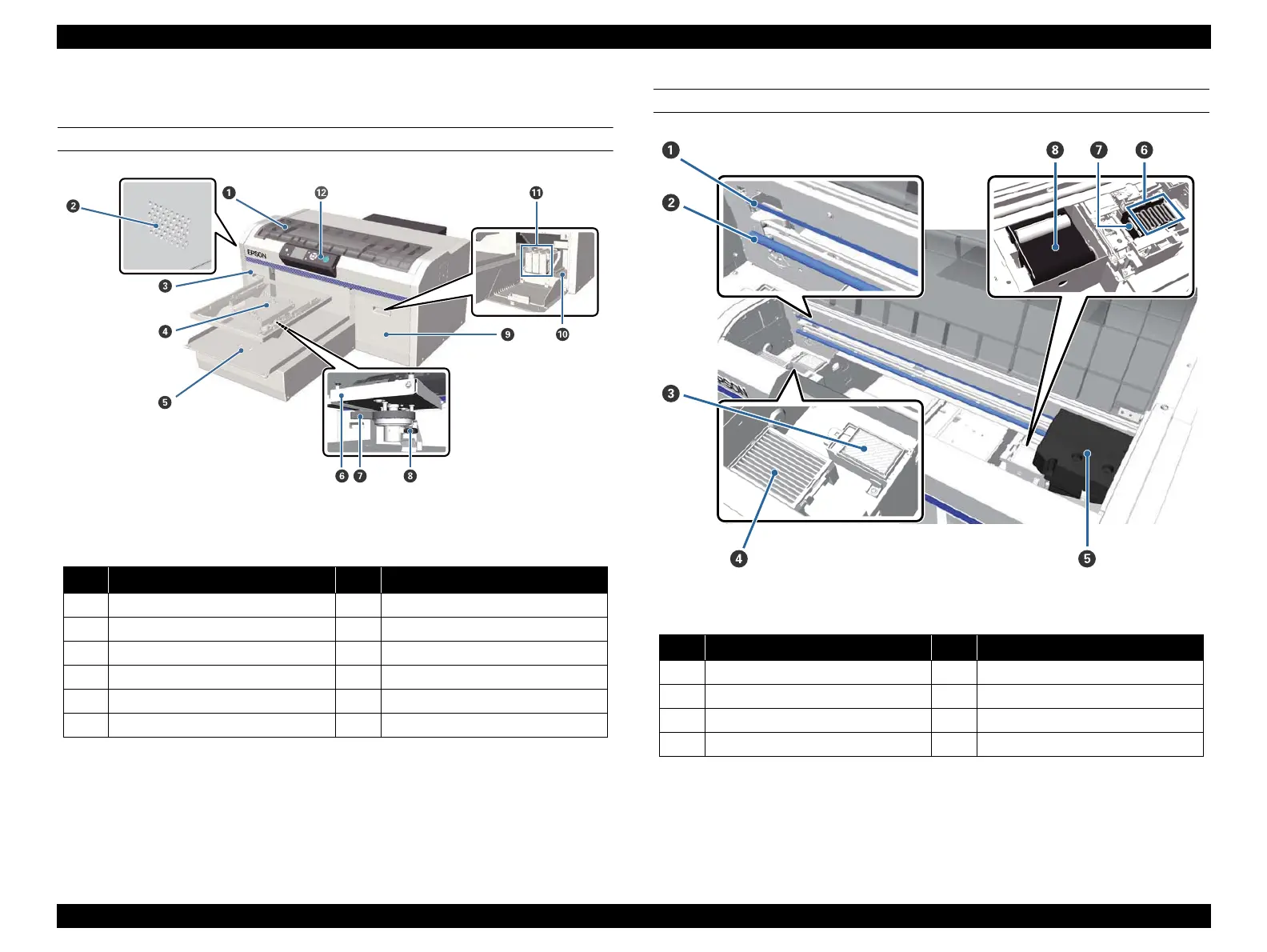

Figure 1-6. Front
INSIDE
Figure 1-7. Inside
Table 1-10. Front
No. Name No. Name
1 Printer Cover 7 Height Adjustment Lever
2 Airflow Vents 8 Fixing Lever
3 Cartridge Cover (Left) 9 Cartridge Cover (Right)
4 Platen 10 Tool Storage Space
5 Movable Base 11 Ink Cartridges
6 Parallel Adjustment Plate 12 Control Panel
Table 1-11. Inside
No. Name No. Name
1 Carriage Scale 5 CR Unit
2 Carriage Shaft 6 Anti-drying Cap
3 Flushing Pad 7 Suction Cap
4 Air Filter 8 Wiper Unit
