DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 103
Confidential
3.4.5 Carriage Mechanism/Ink System Mechanism
3.4.5.1 CR COVER
1. Unlock the CR UNIT. (p69)
2. Remove the six screws, and remove the CR COVER.
A) Silver M3x8 Cup P-tite screw: 6 pcs

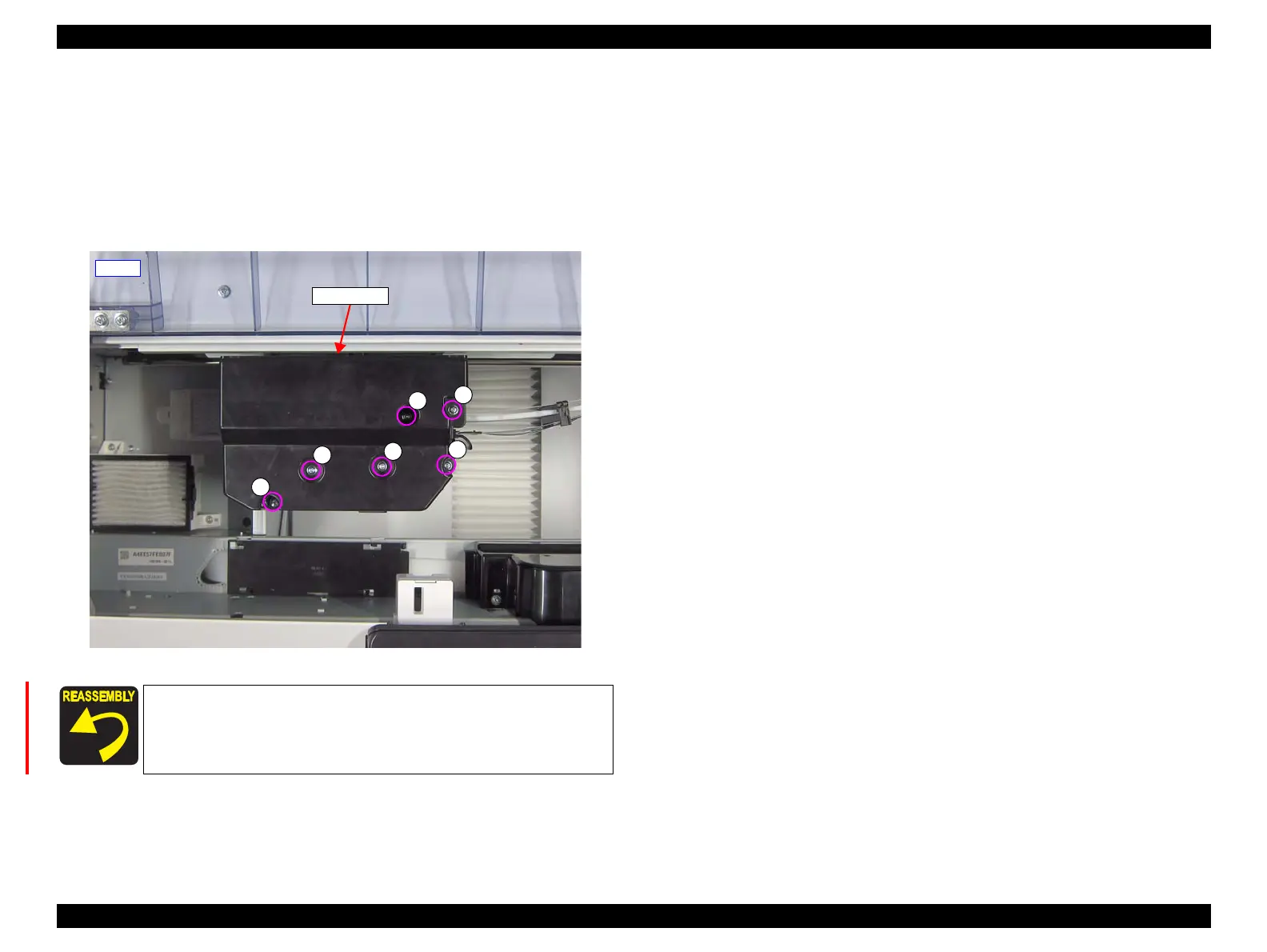

Figure 3-50. Removing the CR COVER
x
Installing the CR COVER, attach the sponge of the INK MIST
COVER ASSY. (p114)
A
A
A
A
A
A
CR COVER
Upper
