3.4.4.5 CR SUB BOARD
1. Unlock the CR UNIT. (p69)
2. Remove the CR COVER. (p103)
3. Disconnect all FFCs from the CR SUB BOARD.
4. Remove the two screws, and remove the CR SUB BOARD.
A) Silver M3x8 P-tite screw with built-in washer: 2 pcs

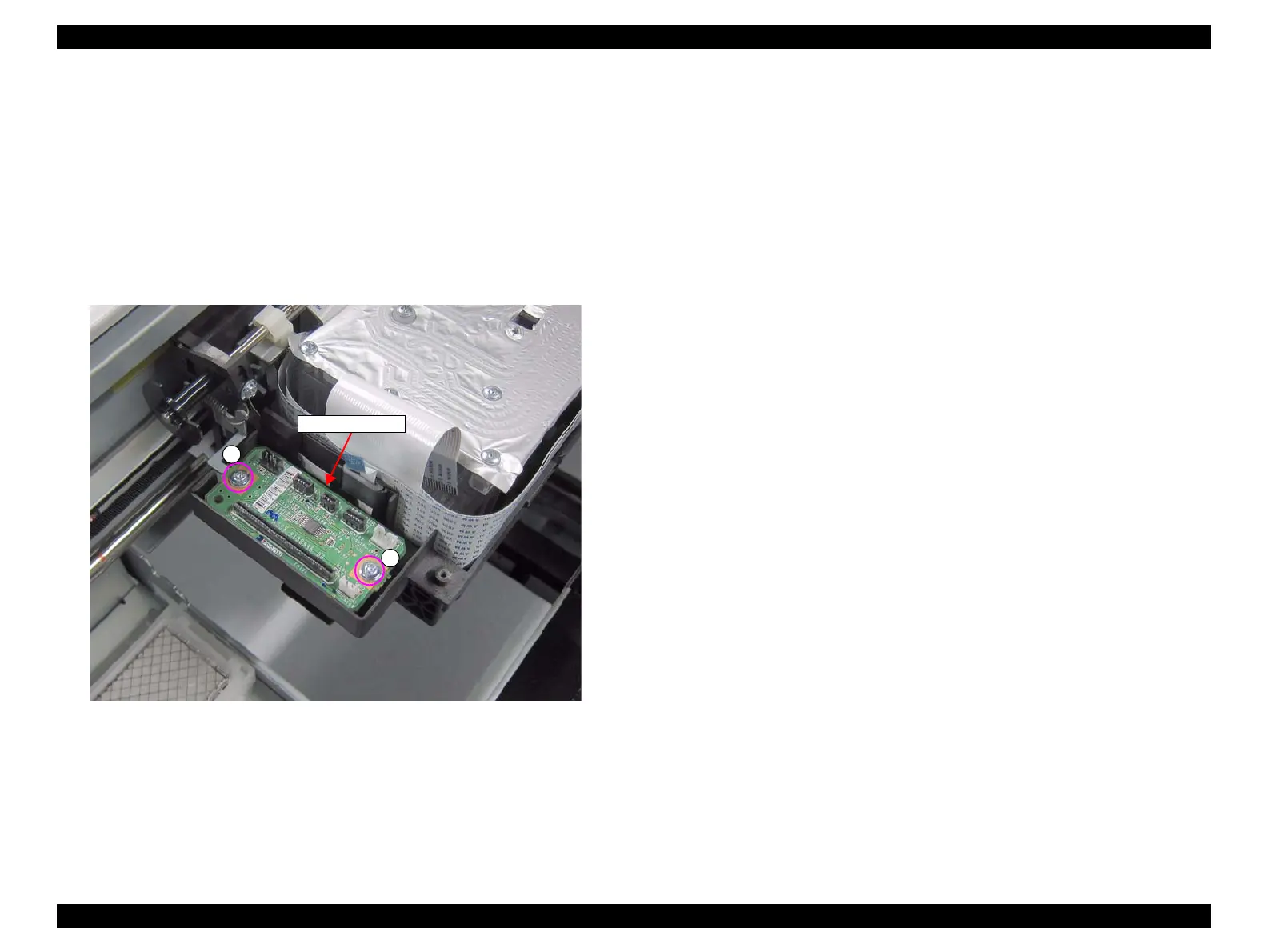

Figure 3-49. Removing the CR SUB BOARD
CR SUB BOARD
A
A
