3.4 Disassembly and Assembly Procedure
This section describes procedures for disassembling the components allowed to be
disassembled. Unless otherwise specified, disassembled units or components can be
reassembled by reversing the disassembly procedure.
3.4.1 Preparation for servicing
3.4.1.1 Unlocking the CR UNIT
 Automatic
1. Turn the printer ON in the Serviceman Mode.
Turn the power ON while pressing [Menu], [] and [OK] buttons together.
2. Select Mecha Adjustment - CR Un Cap.
3. Press the [OK] button while [Enter] Un Cap is displayed.
The CR UNIT is unlocked.
 Manual
1. Open the PRINTER COVER.
2. Remove the RIGHT HOUSING CAP. (p88)
3. Rotate the gear shown in the figure in the direction of the arrow to unlock the CR
Unit (about 10 rounds).

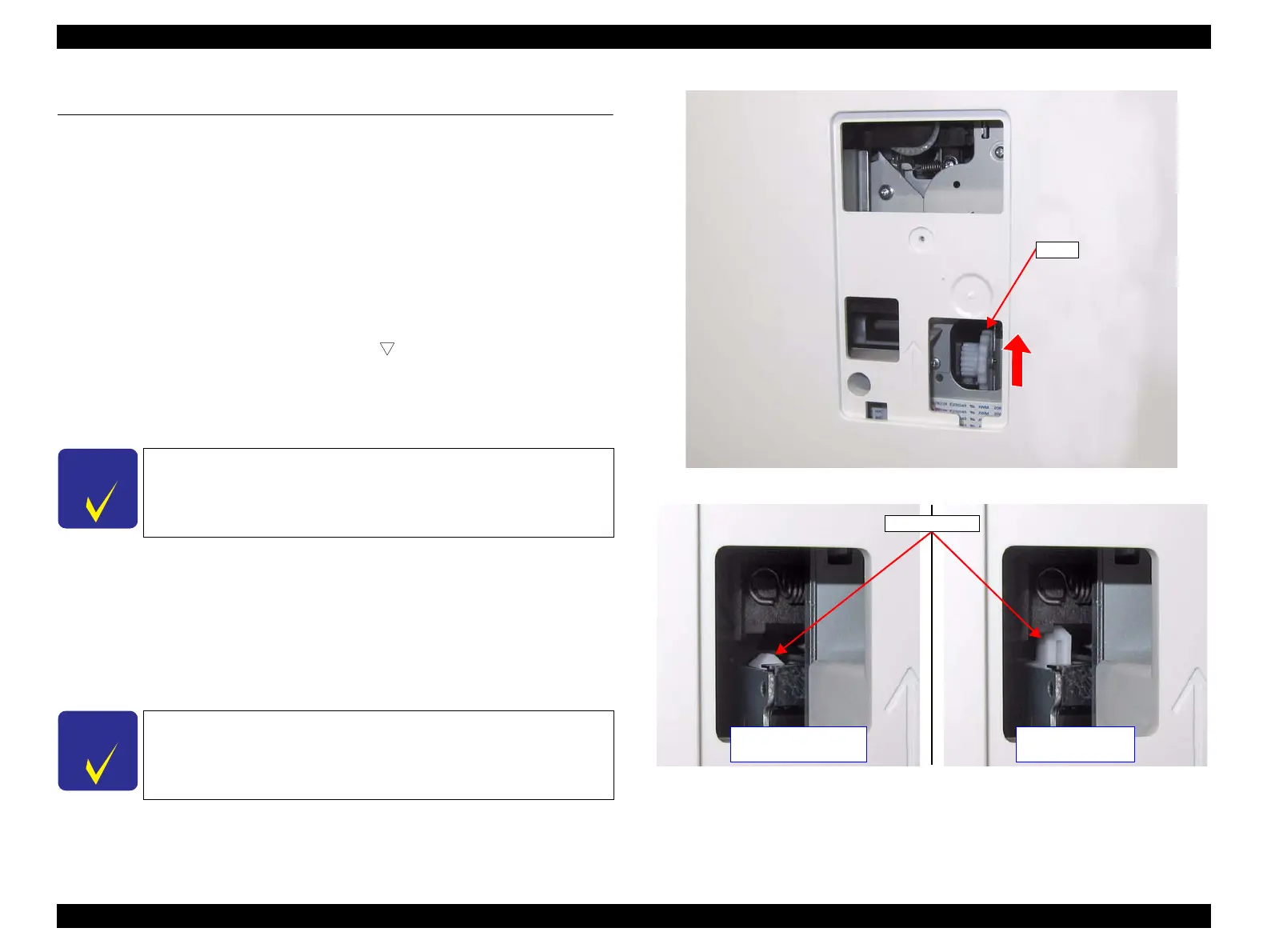

Figure 3-9. Unlocking the CR UNIT
Figure 3-10. Status of the CR Lock Lever
C H E C K
P O I N T
Be careful when turning the power off because the CR UNIT is not
capped then.
C H E C K
P O I N T
Before operating the CR UNIT, see Figure 3-10 and confirm that
the CR Lock Lever is set down completely and the CR Lock is
released.
Gear
CR Lock Lever
CR unlocked
(The Lever is lowered)
CR locked
(The lever is raised)
