SC-F2000 Revision C
ADJUSTMENT TF Adjustments 262
Confidential
[Blue]: Button or menu name on the program screen / [Black]: Button or menu name on the operation panel of the printer
4.13.6 TF Scale Check
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following part in advance.
Left Cover Assy (P. 86)
2. Turn the printer ON.
3. Start the Service Program and select [TF Scale Check].
4. Click [RUN] to rotate the TF Scale.
The TF SCALE rotates and the scale is read by the TF Encoder. After reading, the
judgment result is displayed.
The result is OK: End of adjustment
The result is NG: Go to Step 5
5. Since the TF Scale may be dirty, clean it with ethanol. If the result is still NG,
replace the TF Encoder (P. 183) or the TF Scale (P. 187).
After the replacement, perform Step 4 to run the check again.

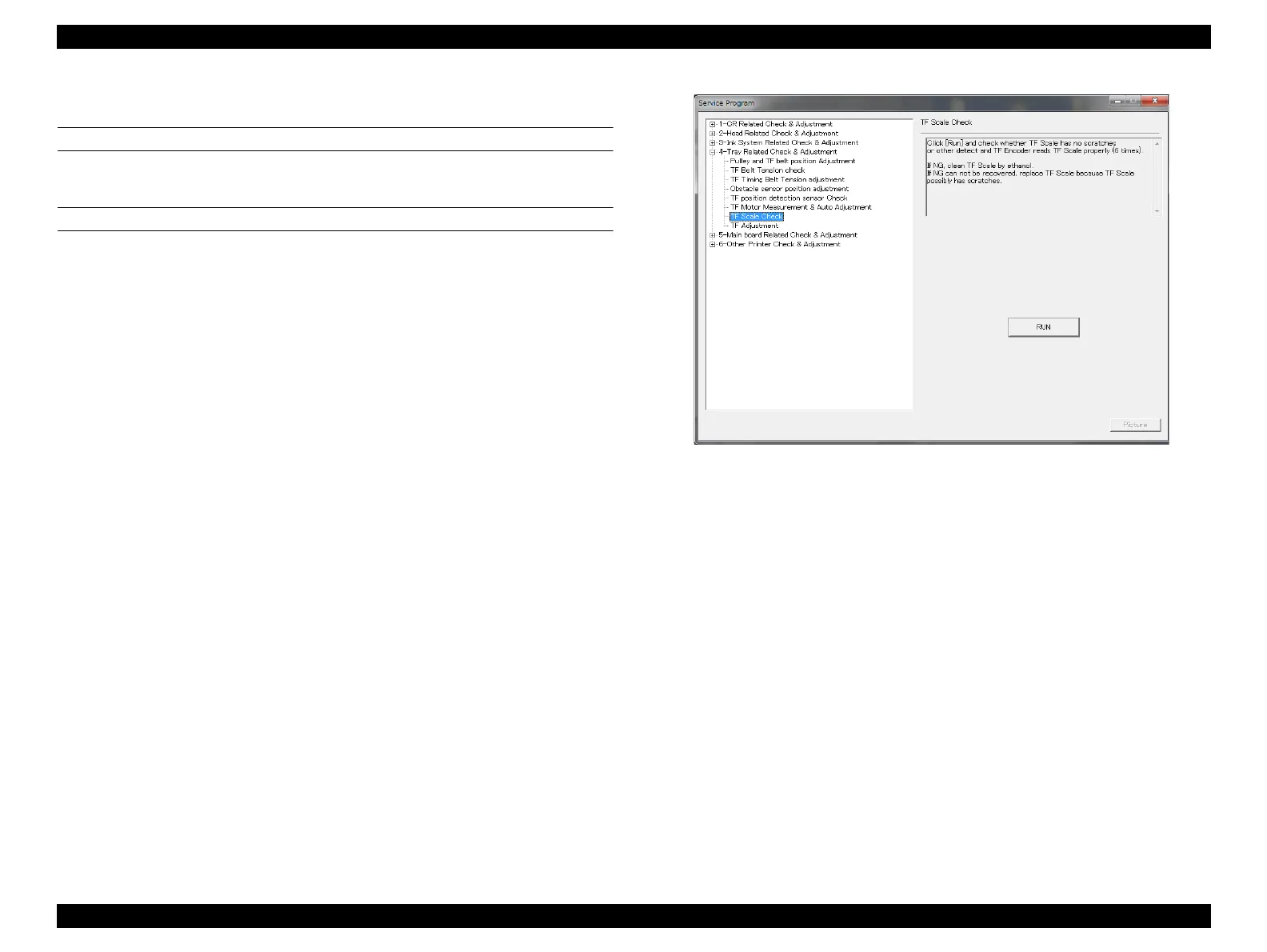

Figure 4-66. [TF Scale Check] Screen
To Next Page
