SC-F2000 Revision C
ADJUSTMENT Head Related Checks and Adjustments 237
Confidential
[Blue]: Button or menu name on the program screen / [Black]: Button or menu name on the operation panel of the printer
4.11.3 Nozzle Check
PAPER USED
Media for adjustment
Size: A4
Type:
Premium Glossy Photo Paper (250)
EXECUTION MODE
Normal Mode
PROCEDURE
1. Set the media for adjustment referring to
"4.1.5 How to set the media for
adjustment" (p.208).
2. Turn the printer ON.
3. Start the Service Program and select [Nozzle Check].
4. Click [PRINT].
The check pattern is printed.
5. Examine the patterns for any missing segments, broken lines, or misaligned lines.
6. If any of the above symptoms is observed, run the cleaning and print the pattern
again to see if the problem is solved.

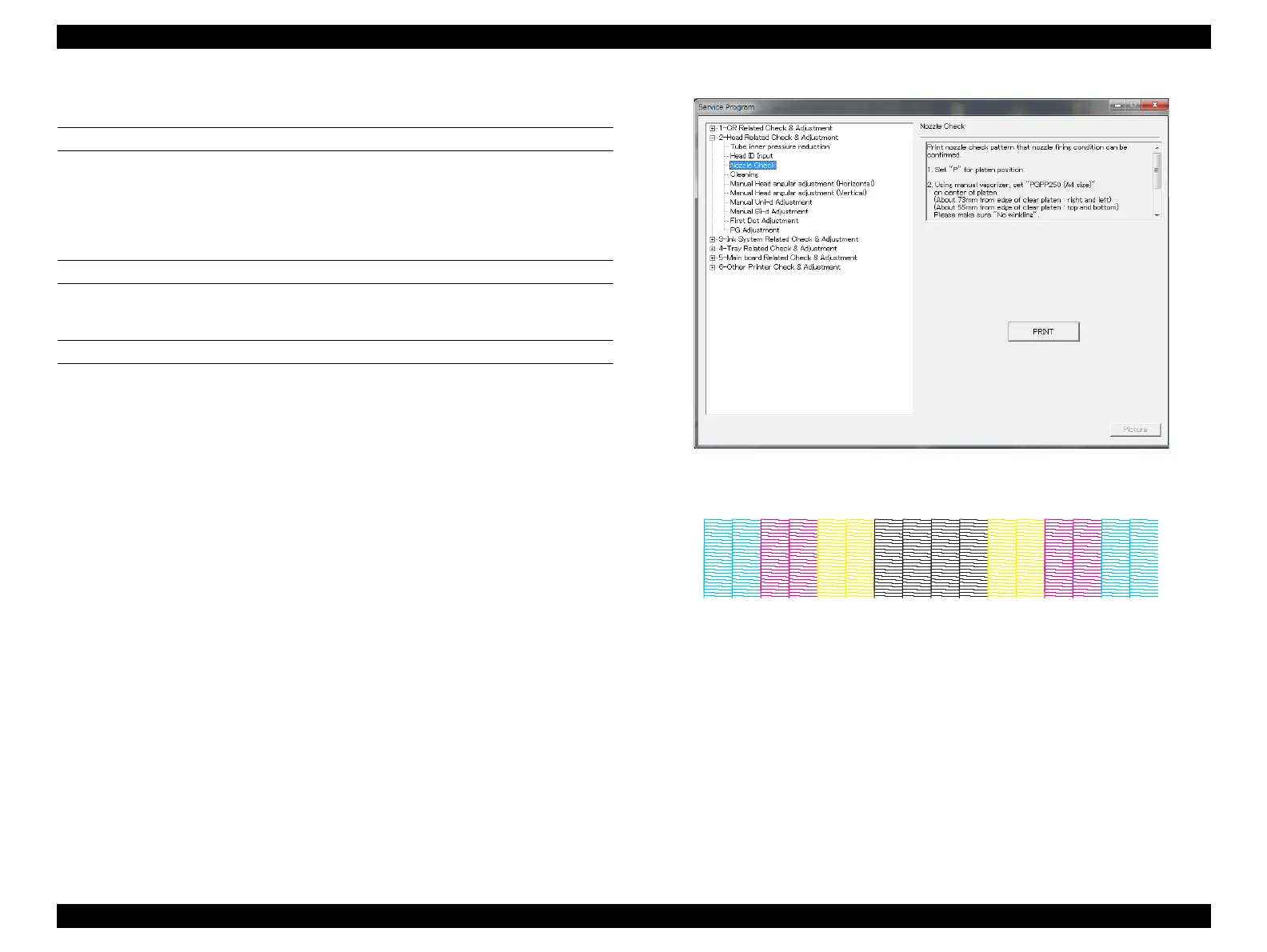

Figure 4-35. [Nozzle Check] Screen
Figure 4-36. Nozzle check pattern
To Next Page
