Epson SC-F2000 User Manual

SC-F2000 Revision C

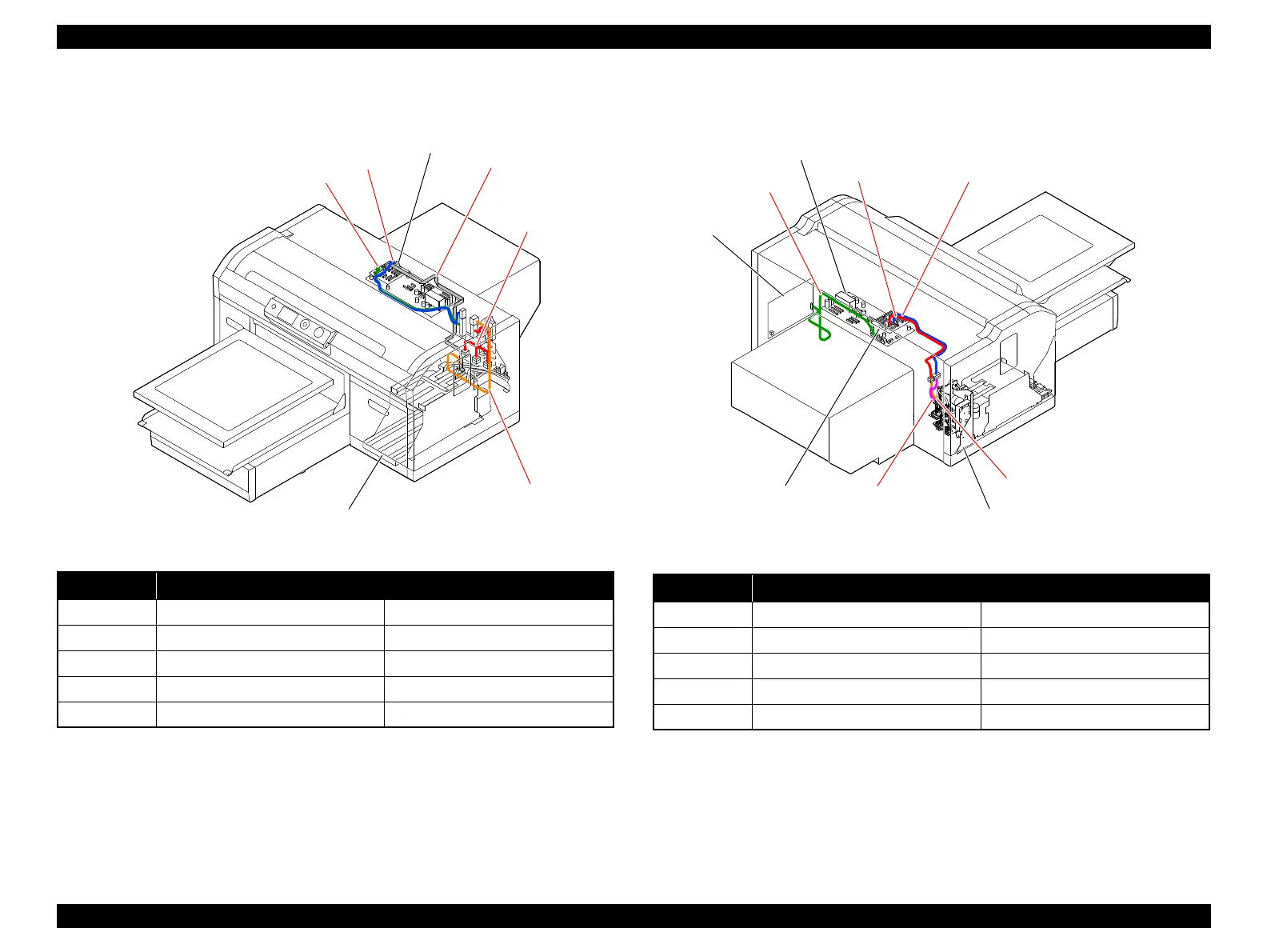

APPENDIX Connection Diagram 303
Confidential
6.2.3 Right Ink Cartridge Holder 6.2.4 Circulation Pump
Cable No. Connection
1 CSIC SUB-B BOARD (CN10)
2 Cable (4) SUB-B BOARD (CN5)
3 Cable (5) SUB-B BOARD (CN3)
4 Pump motor Relay cable (No.8)
5 Ink level sensor Relay cable (No.6)
（1）
（2）
（3）
（5）
（4）
SUB-B BOARD
RIGHT INK
HOLDER ASSY
Cable No. Connection
1 Cable (4) SUB-B BOARD (CN6)
2 Cable (5) SUB-B BOARD (CN8)
3 POWER SUPPLY BOARD (CN2) MAIN BOARD (CN1)
4 Circulation pump encoder sensor Relay cable (No.41)
5 Circulation pump motor Relay cable (No.40)
（1）
（2）
（3）
（5）
（4）
CIRCULATION
PUMP ASSY
MAIN BOARD
SUB-B BOARD
POWER SUPPLY
BOARD
