SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 114
Confidential
3.4.5.4 INK MIST COVER ASSY
When installing the CR COVER, DAMPER KIT, PRINT HEAD, and/or LEFT INK
HOLDER ASSY, see below and install the INK MIST COVER ASSY.
PARTS TO BE ATTACHED
x
x
The INK MIST COVER ASSY cannot be reused once it is
removed. Make sure to replace it with a new one.

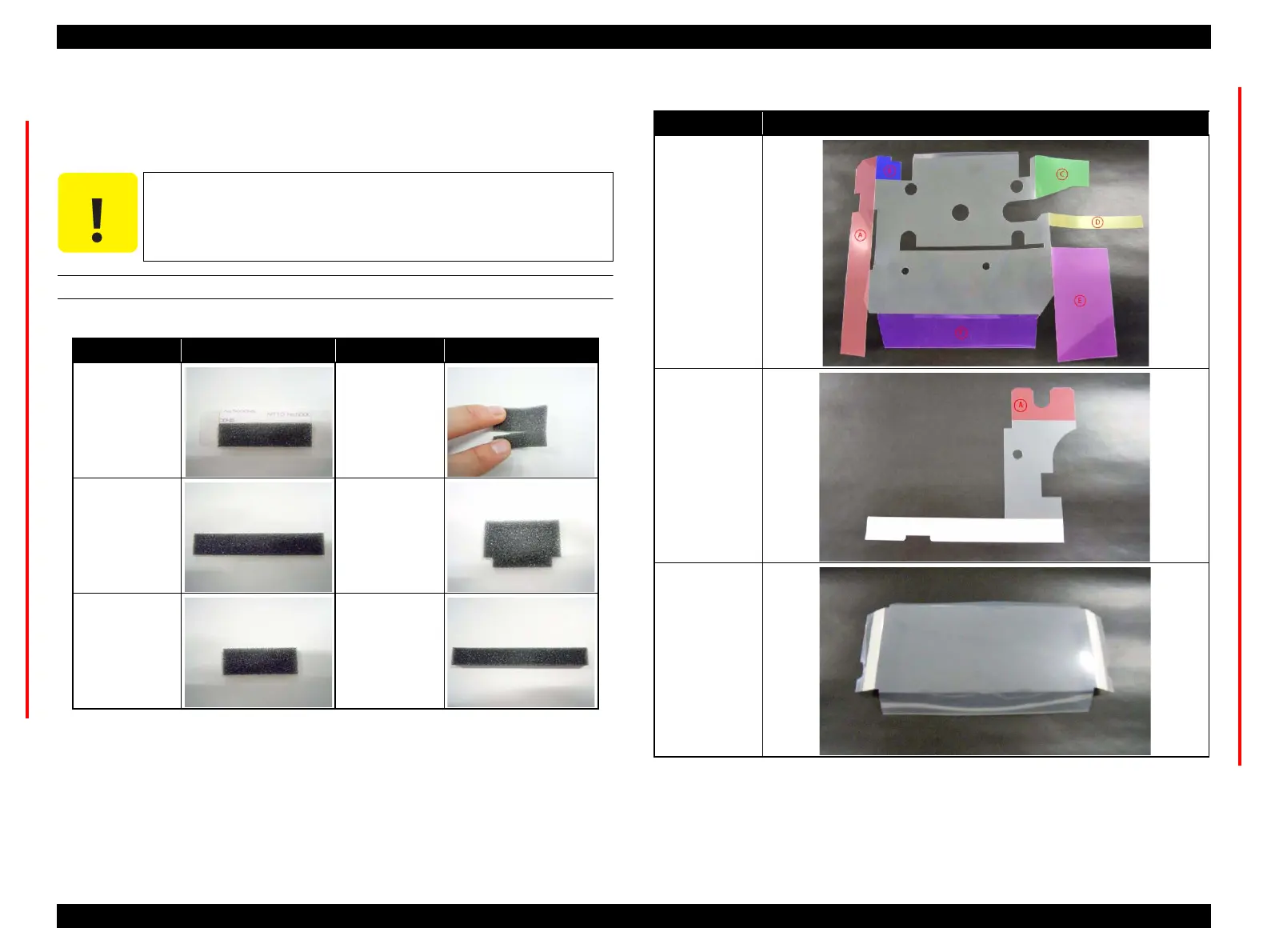

Table 3-2. Sponge
Parts name Shape
Parts name
Shape
Sponge (1)
(p115)
Sponge (4)
(p115)
Sponge (2)
(p115)
Sponge (5)
(p115)
Sponge (3)
(p115)
Sponge (6)
(p117)
Table 3-3. Film
Parts name Shape
Film (1) (p117)
Film (2) (p121)
Film (3) (p122)
To Next Page
