7. Install the sponge (5) in the CR COVER.

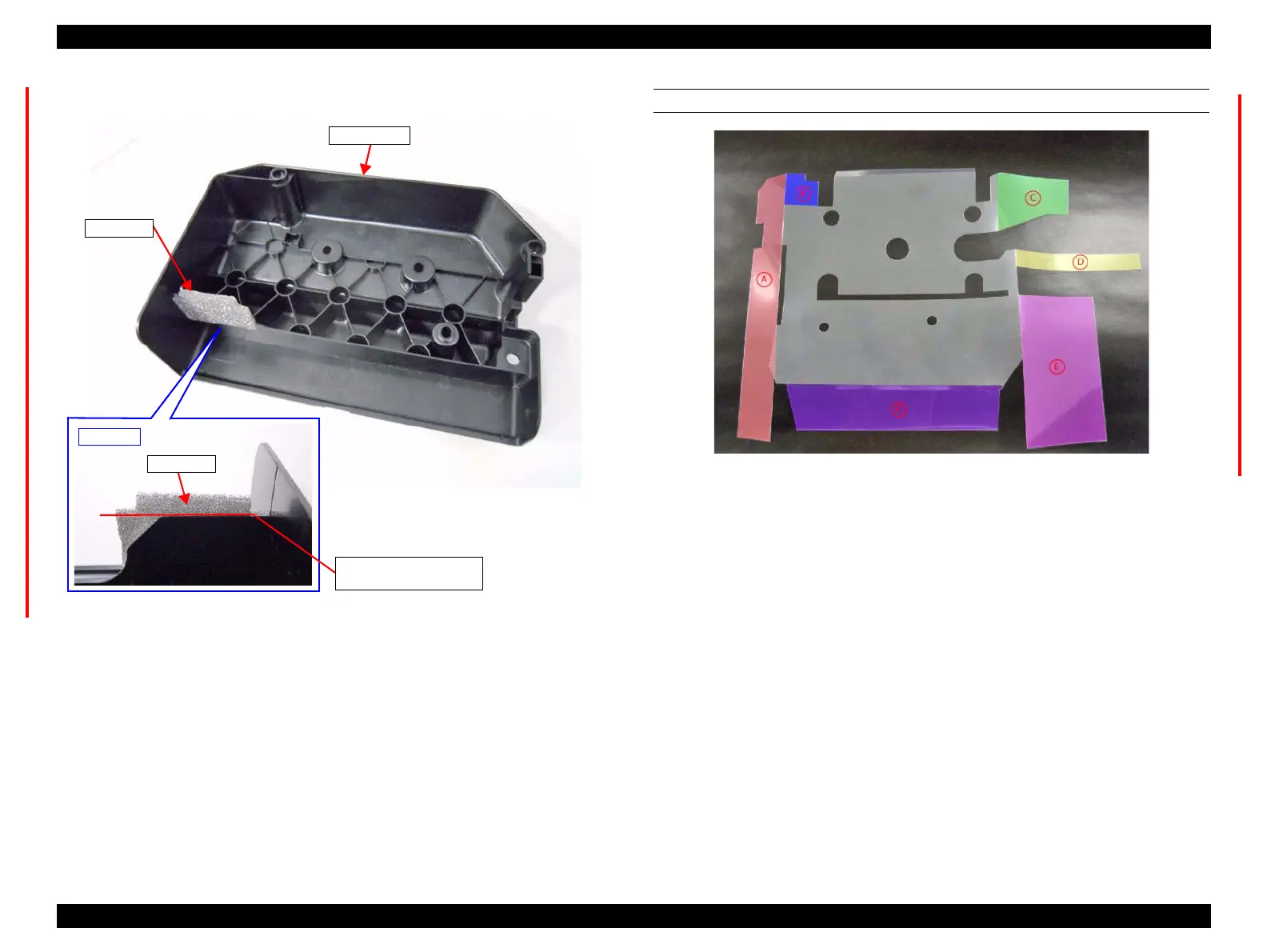

Figure 3-70. Installing the sponge (5)
INSTALLING THE FILM (1)
Figure 3-71. Film (1)
Back side
Sponge (5)
Align the edges of the CR
COVER and sponge (5).
Sponge (5)
CR COVER
